Wipers And Washers: Notes

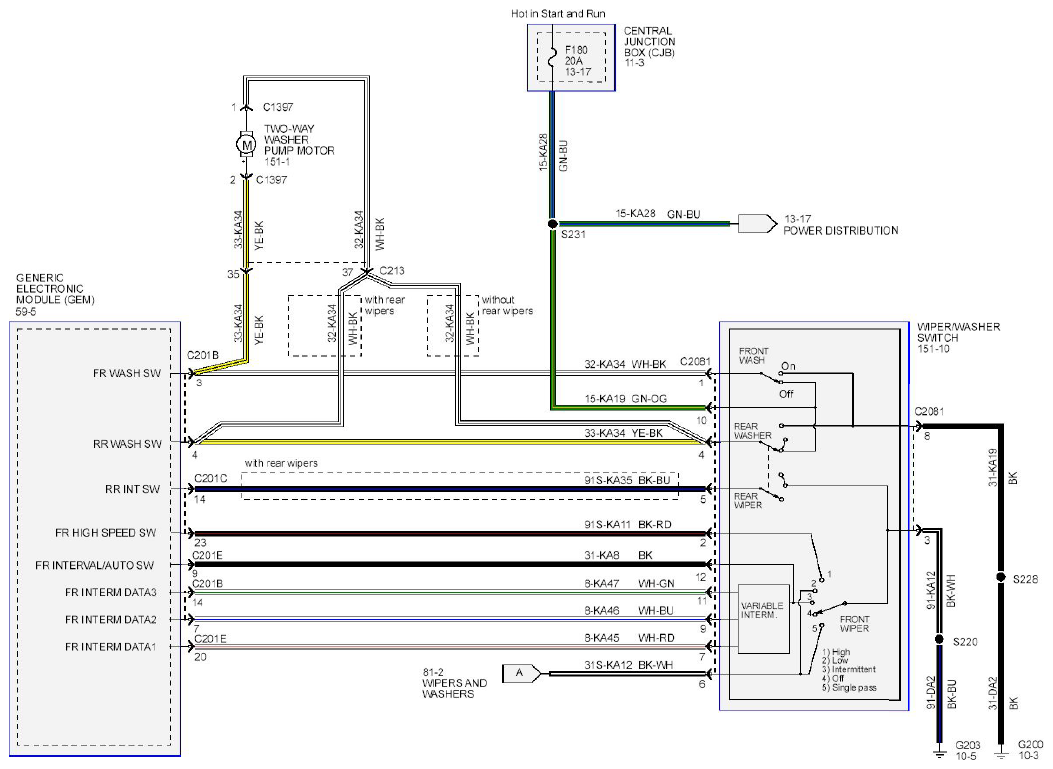

Fig 1: Wipers And Washers - Circuit Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

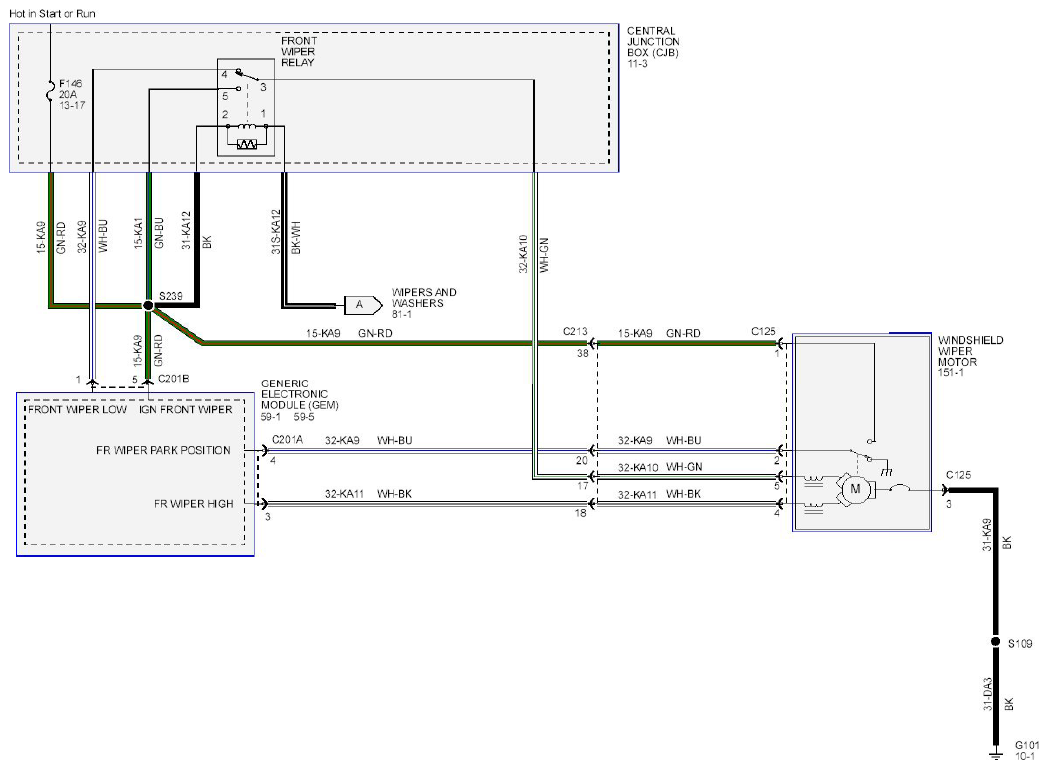

Fig 2: Wipers And Washers - Circuit Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
