Starting System
Starting System

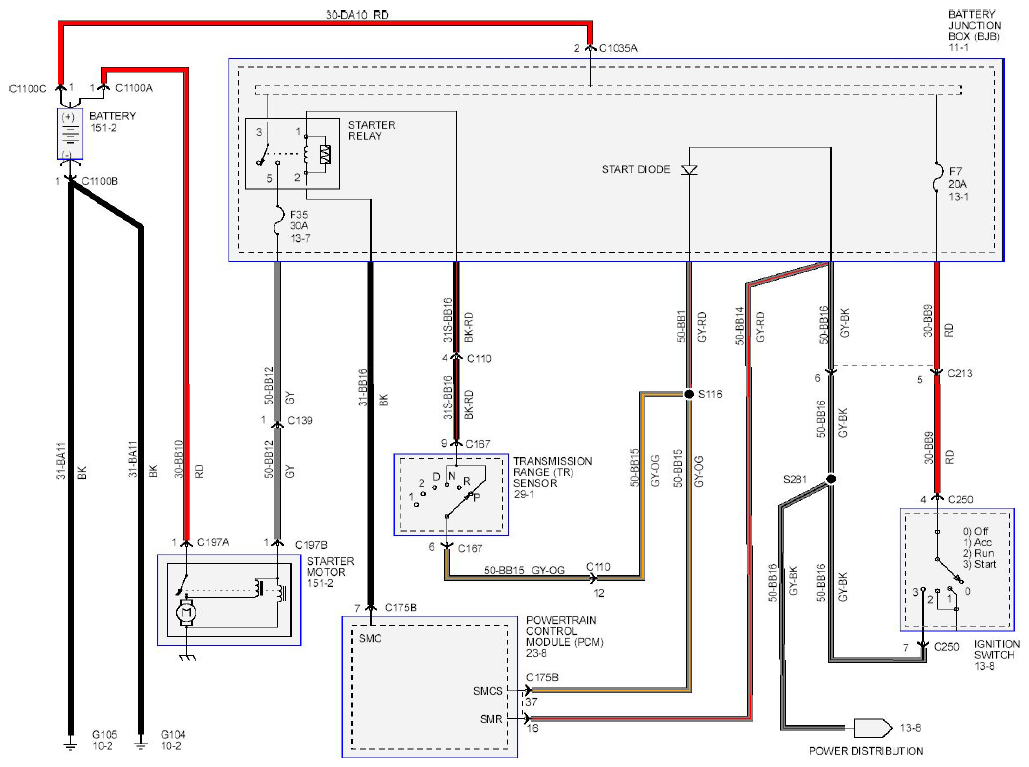

Fig 1: Starting System - Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
