Shift Interlock
Shift Interlock

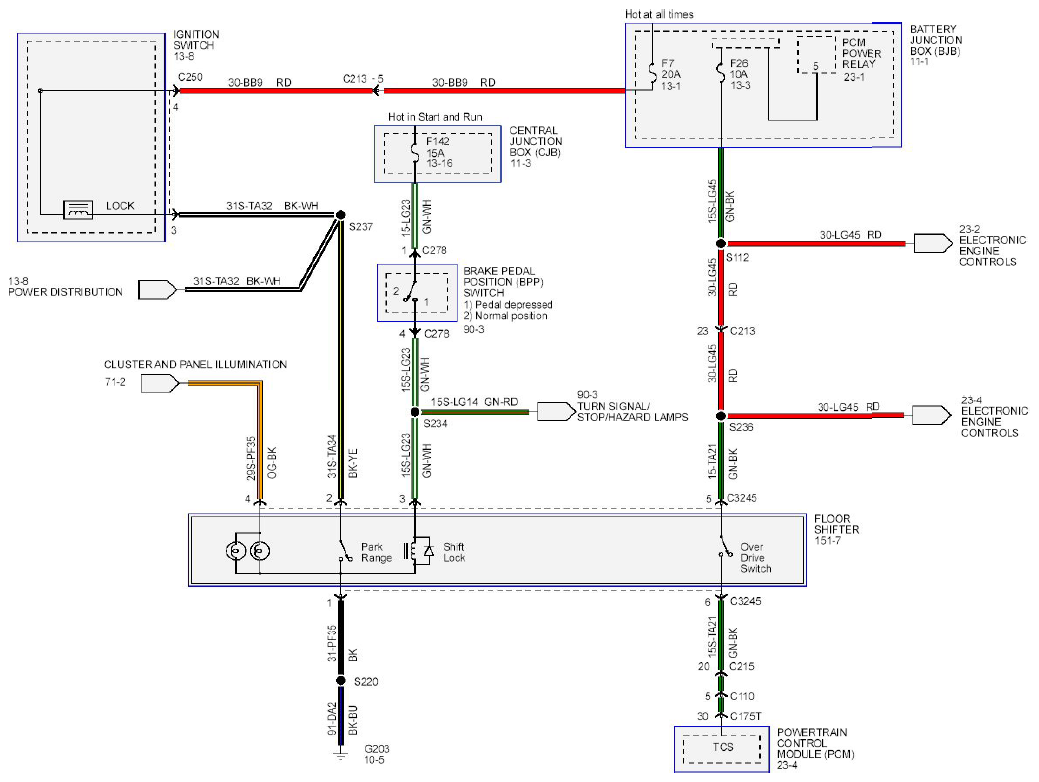

Fig 1: Shift Interlock - Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
