Power Windows
Power Windows

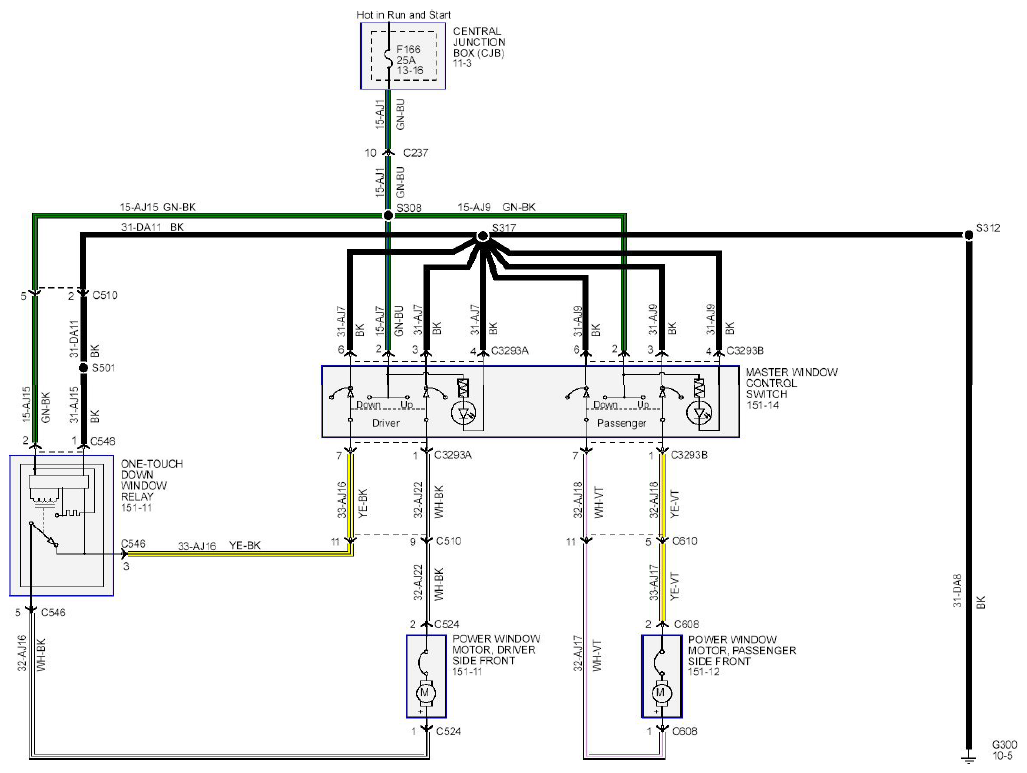

Fig 1: Power Windows - Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
