Manual Climate Control System: Notes

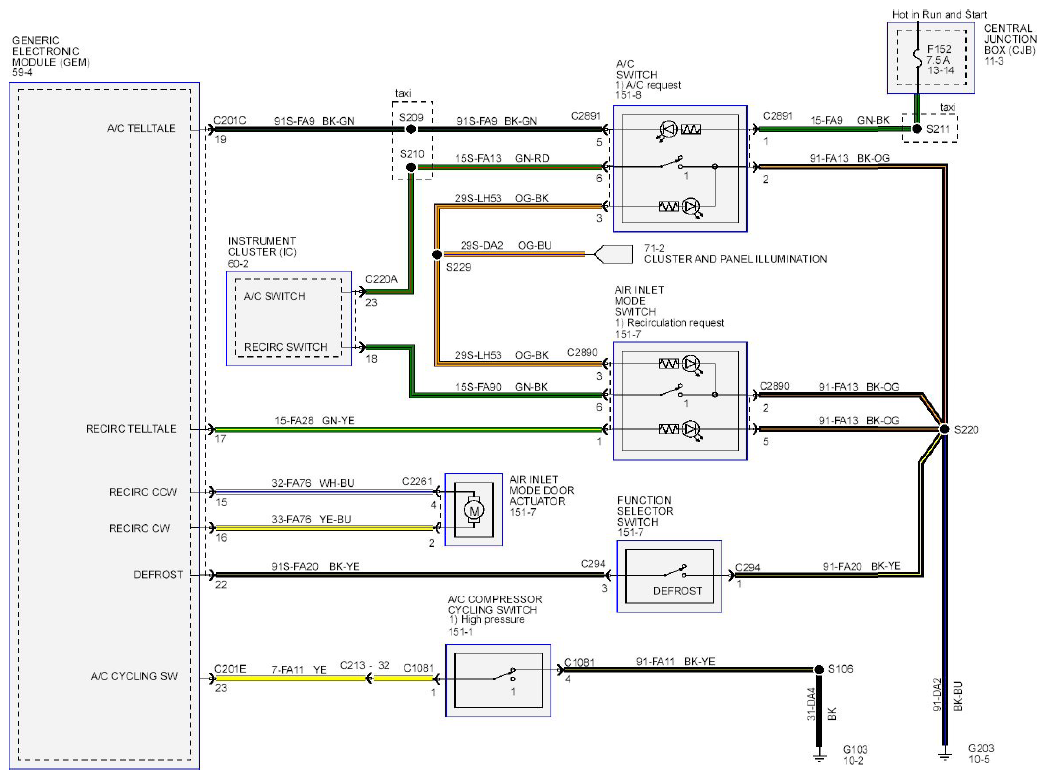

Fig 1: Manual Climate Control System - Circuit Diagram (1 Of 4)
Courtesy of FORD MOTOR CO.

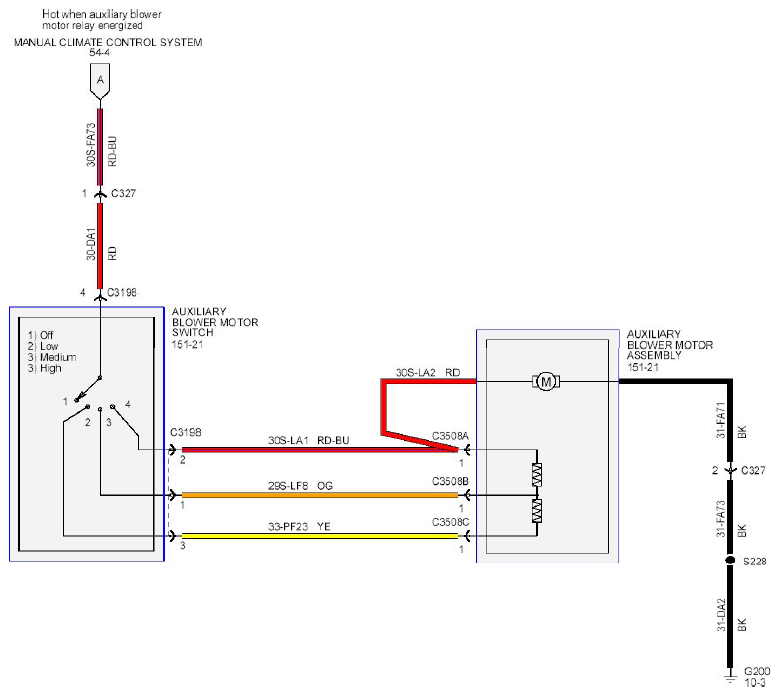

Fig 2: Manual Climate Control System - Circuit Diagram (2 Of 4)
Courtesy of FORD MOTOR CO.

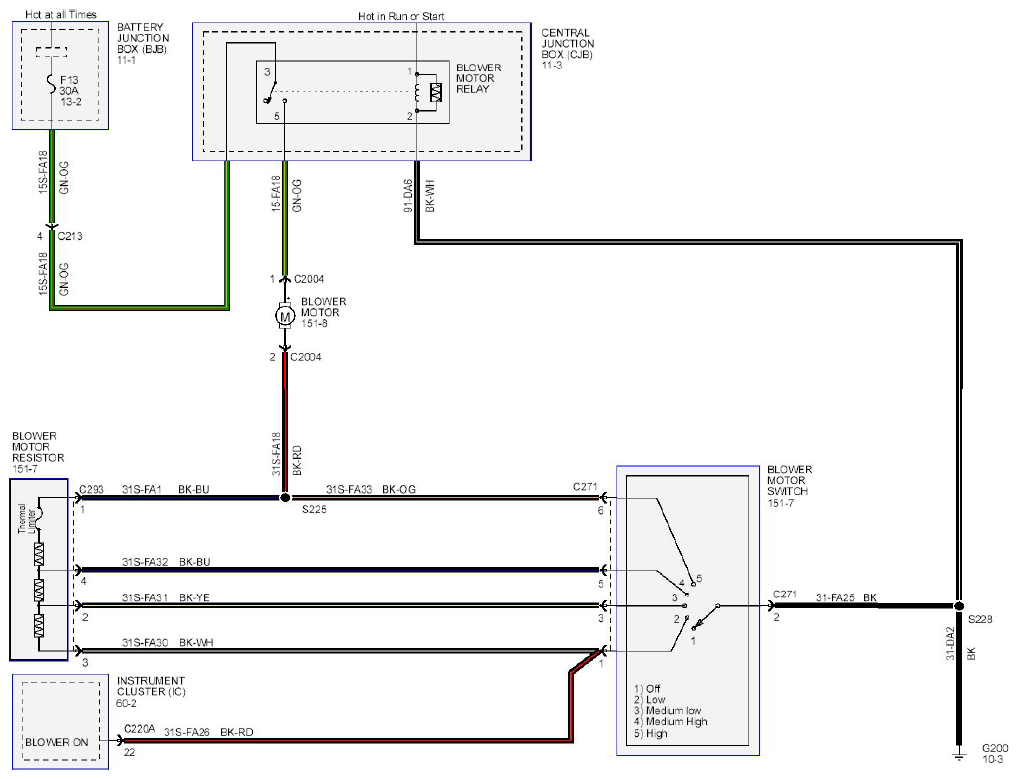

Fig 3: Manual Climate Control System - Circuit Diagram (3 Of 4)
Courtesy of FORD MOTOR CO.

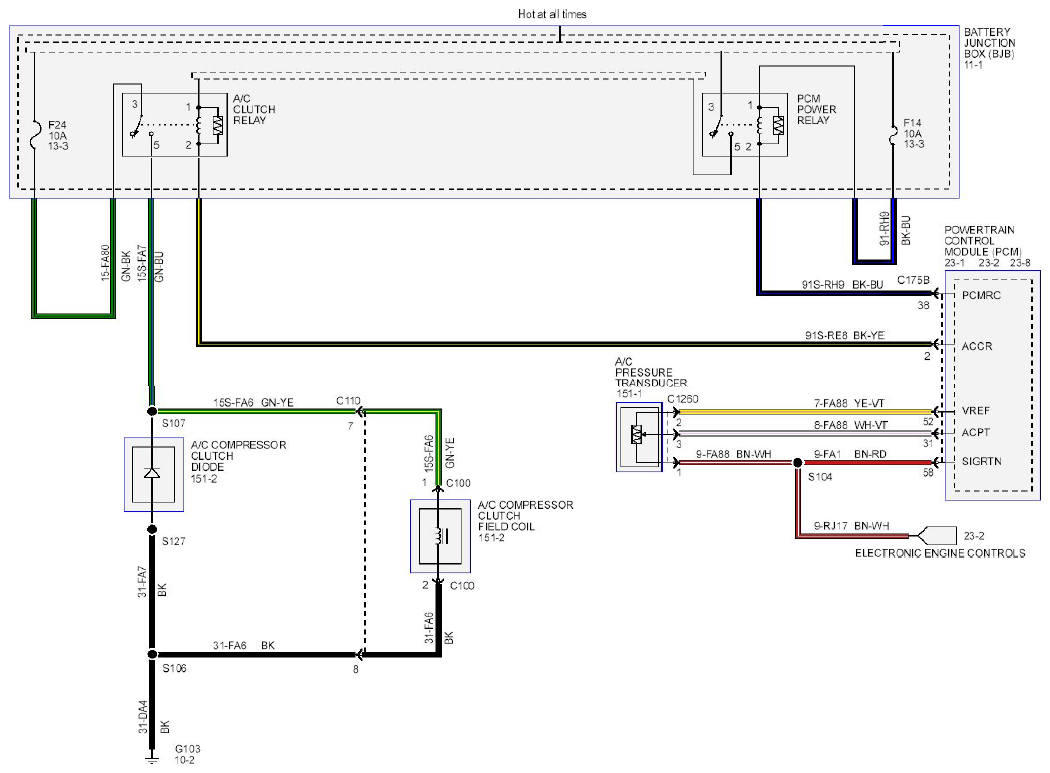

Fig 4: Manual Climate Control System - Circuit Diagram (4 Of 4)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
