Ford
>>
2013
>>
Transit Connect XLT Premium
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
MULTIFUNCTION Control Modules
>>
With Power Door Locks
With Power Door Locks

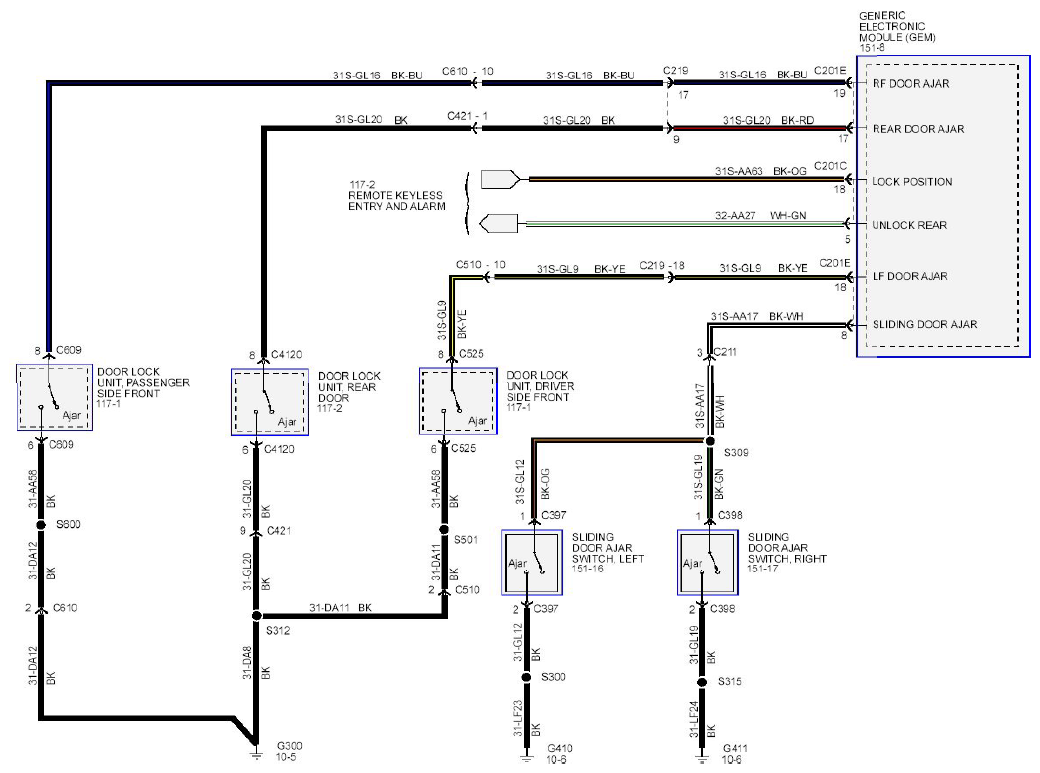

Fig 1: Multifunction Control Modules (With Power Door Locks) - Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
