Cruise Control
Cruise Control

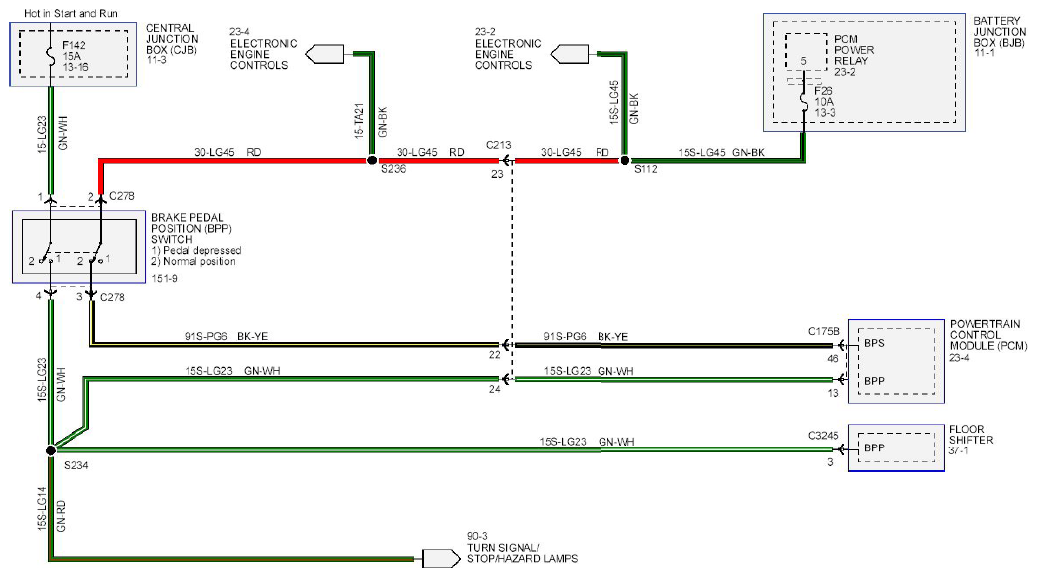

Fig 1: Cruise Control - Circuit Diagram (1 Of 3)
Courtesy of FORD MOTOR CO.

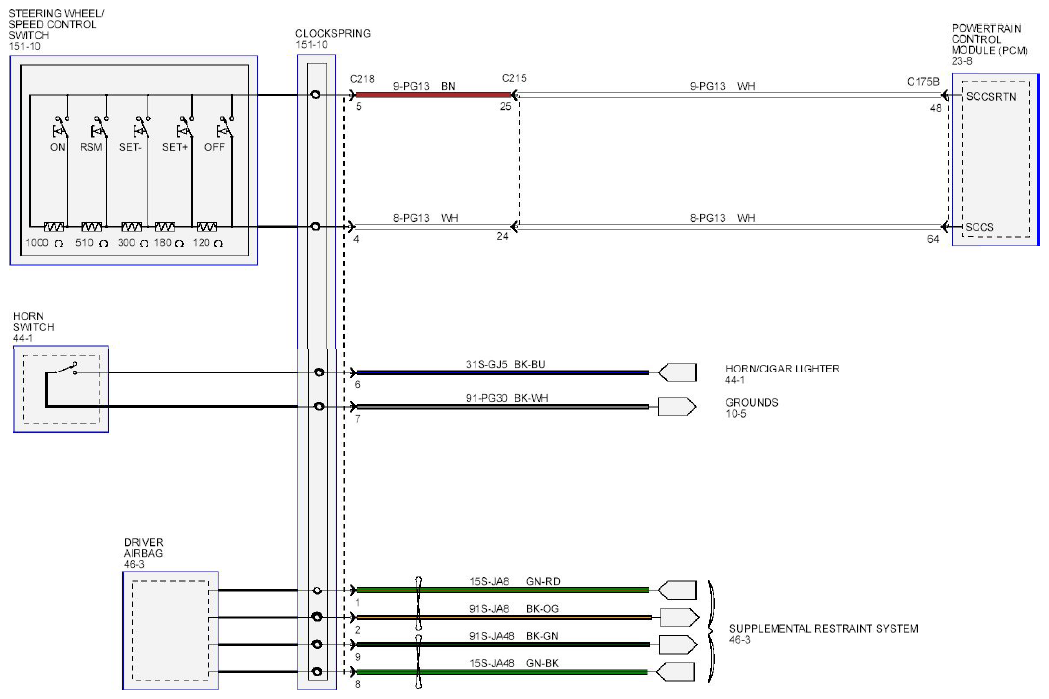

Fig 2: Cruise Control - Circuit Diagram (2 Of 3)
Courtesy of FORD MOTOR CO.

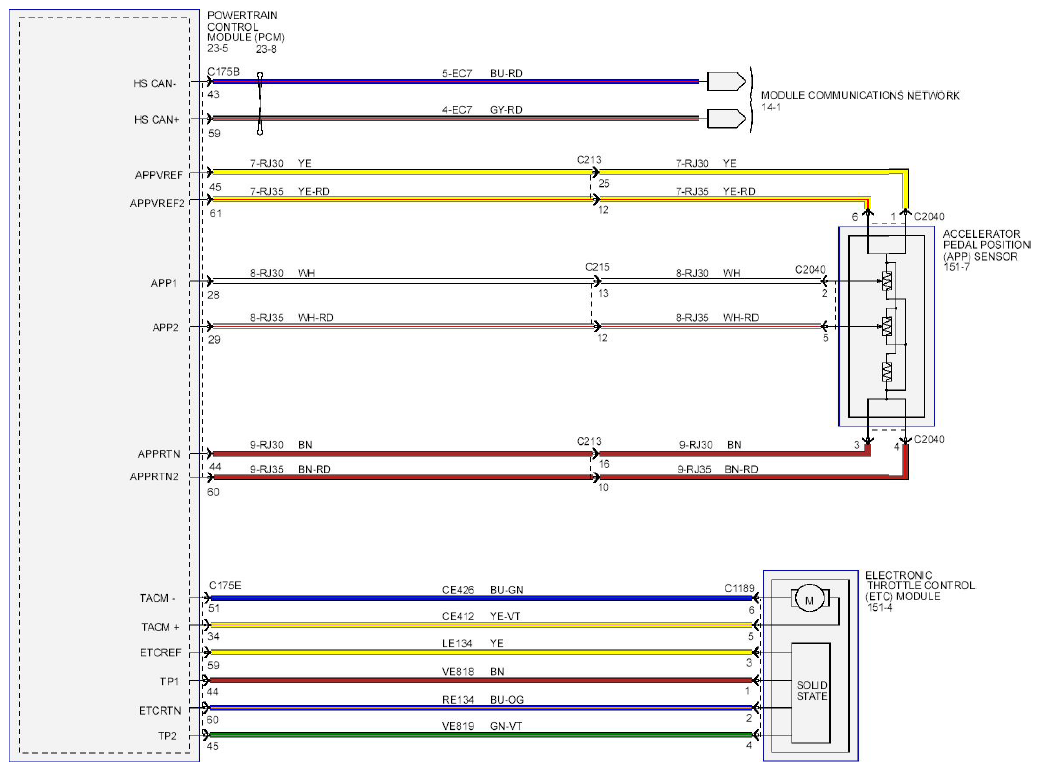

Fig 3: Cruise Control - Circuit Diagram (3 Of 3)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
