Audio System: Sync

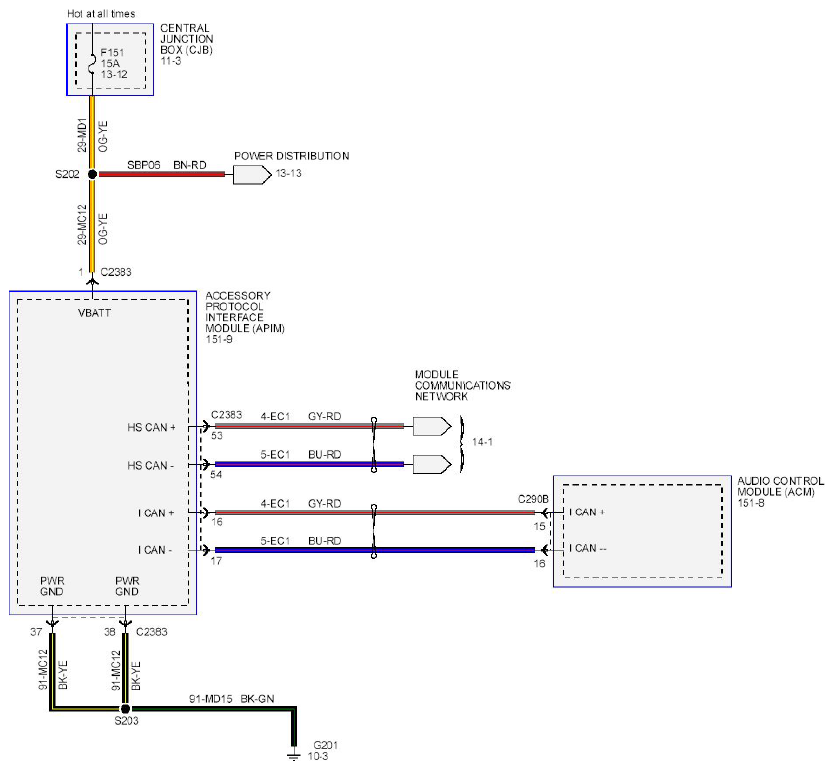

Fig 1: Audio System (SYNC) - Circuit Diagram (1 Of 3)
G09083707Courtesy of FORD MOTOR CO.

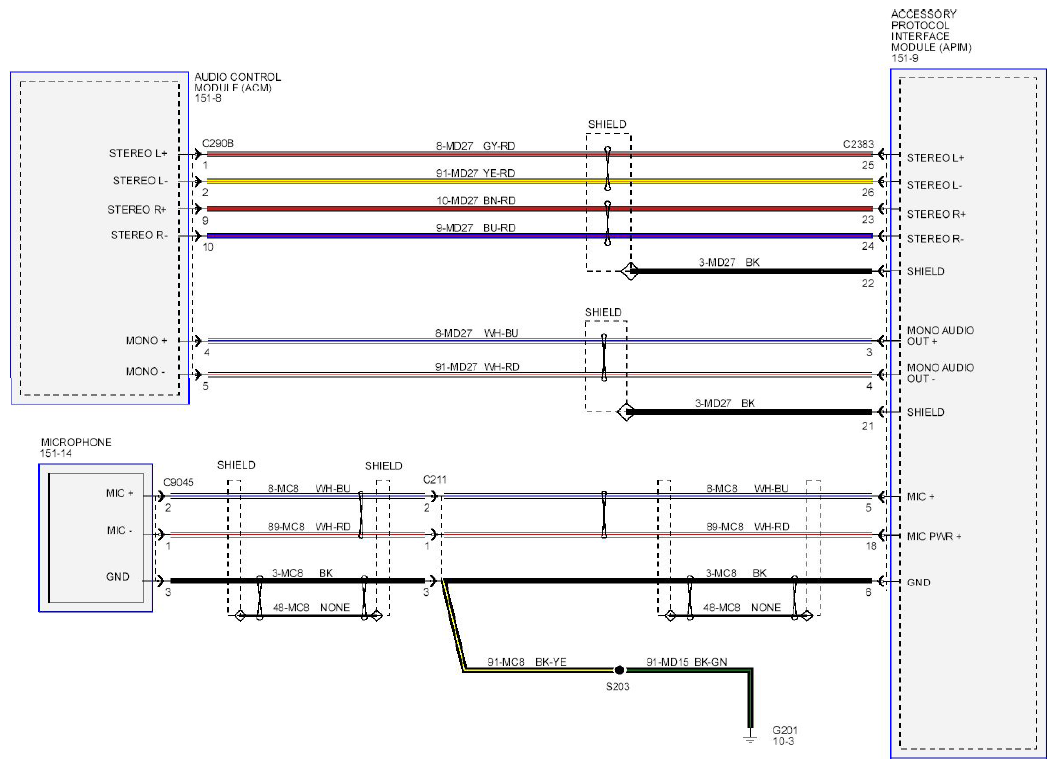

Fig 2: Audio System (SYNC) - Circuit Diagram (2 Of 3)
G09083708Courtesy of FORD MOTOR CO.

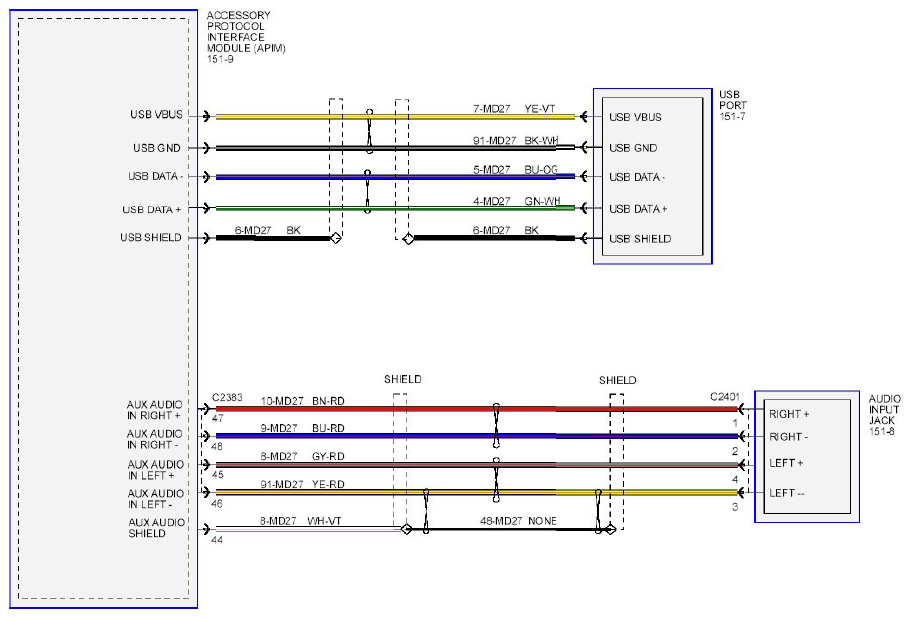

Fig 3: Audio System (SYNC) - Circuit Diagram (3 Of 3)
G09083709Courtesy of FORD MOTOR CO.
