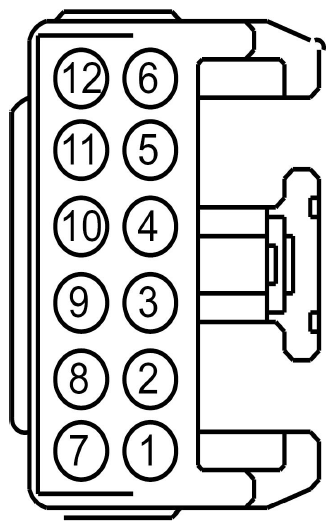

Wiper/Washer Switch Connector End View (C2081)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | 32-KA34 (WH-BK) | 16 | TWO WAY~WASHER~PUMP ~MOTOR, SWITCHED BETWEEN: BATTERY VOLTAGE, GROUND OR OPEN CIRCUIT. | |
| 2 | 91S-KA11 (BK-RD) | 22 | FRONT~WIPER ~MOTOR *SPEED 2, SWITCHED GROUND | |
| 3 | 91-KA12 (BK-WH) | 22 | FRONT~WIPER ~RELAY, GROUND | |
| 4 | 32-KA34 (WH-BK) | 16 | TWO WAY~WASHER~PUMP ~MOTOR, SWITCHED BETWEEN: BATTERY VOLTAGE, GROUND OR OPEN CIRCUIT. | WITHOUT REAR INTERMITENT WIPER |
| 4 | 33-KA34 (YE-BK) | 16 | TWO WAY~WASHER~PUMP ~MOTOR, SWITCHED BETWEEN: BATTERY VOLTAGE, GROUND OR OPEN CIRCUIT. | WITH REAR INTERMITENT WIPER |
| 5 | 91S-KA35 (BK-BU) | 22 | REAR~WIPER ~SWITCH, SWITCHED GROUND | WITH REAR INTERMITENT WIPER |
| 6 | 31S-KA12 (BK-WH) | 22 | FRONT~WIPER ~RELAY, SWITCHED GROUND POWER RETURN | |
| 7 | 8-KA45 (WH-RD) | 22 | FRONT~WIPER~VARIABLE INTERMITTENT ~SWITCH *1, SIGNAL 1 | |
| 8 | 31-KA19 (BK) | 18 | WIPER/WASHER ~SWITCH, GROUND POWER RETURN | |
| 9 | 8-KA46 (WH-BU) | 22 | FRONT~WIPER~VARIABLE INTERMITTENT ~SWITCH *2, SIGNAL 1 | |
| 10 | 15-KA19 (GN-OG) | 16 | WIPER/WASHER ~SWITCH, BATTERY VOLTAGE, OVERLOAD PROTECTED HOT ONLY IN START AND RUN | |
| 11 | 8-KA47 (WH-GN) | 22 | FRONT~WIPER~VARIABLE INTERMITTENT ~SWITCH *3, SIGNAL 1 | |
| 12 | 31-KA8 (BK) | 22 | FRONT~WIPER ~MOTOR, GROUND POWER RETURN |
| Available Pigtail Kits | |

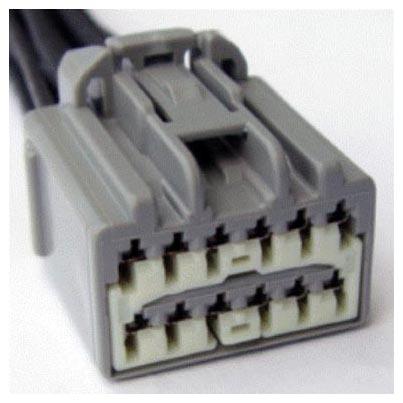

| Pigtail Kit Part Number WPT-503 | Service Part Number: 3U2Z-14S411-RNA Gauge: 16 Pin material: Tin Cavities: 12 Vehicle Uses
|
