Wheel Speed Sensor, Right Front Connector End View (C160)

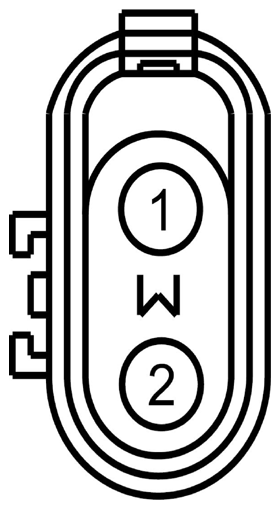

Fig 1: Identifying Wheel Speed Sensor, Right Front Connector (C160)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	9-CF38 (BN-RD)	20	RIGHT FRONT~WHEEL ~SENSOR, SIGNAL RETURN (REFERENCE/GROUND)
2	8-CF38 (WH-RD)	20	RIGHT FRONT~WHEEL ~SENSOR, SIGNAL 1
