Seat Position Sensor, Driver Connector End View (C3207)

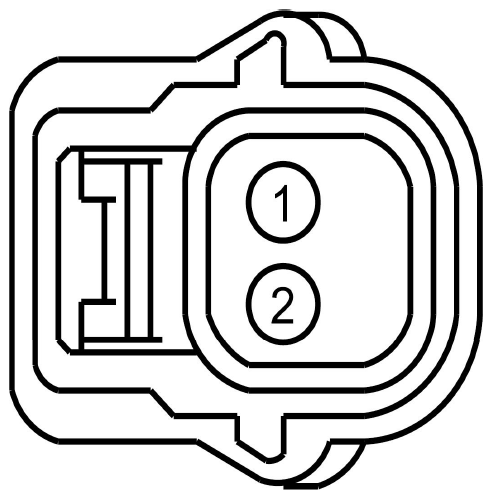

Fig 1: Identifying Seat Position Sensor, Driver Connector (C3207)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	9-JA53 (BN-RD)	20	DRIVER~SEAT POSITION ~SENSOR, SIGNAL RETURN (REFERENCE/GROUND)
2	7-JA53 (YE-RD)	20	DRIVER~SEAT POSITION ~SENSOR, CONSTANT D.C. VOLTAGE OTHER THAN BATTERY

Available Pigtail Kits
Pigtail Kit Part Number WPT-1216	Service Part Number: 8U2Z-14S411-AAB  Gauge: 18  Pin material: Silver  Cavities: 2  Vehicle Uses Sensor - Crash (Engine Compartment) Sensor - Seat Track Position Sensor - Side Impact Solenoid - Down Shift Valve - Heated PCV
