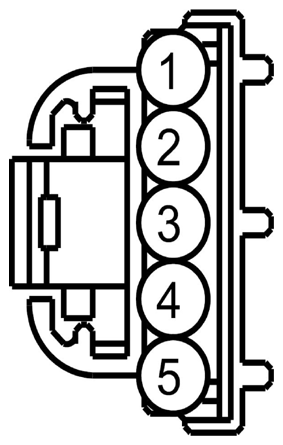

Rear View Camera Display Mirror Connector End View (C9039)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | 15-GK40 (GN-WH) | 20 | REAR VIEW CAMERA DISPLAY, BATTERY VOLTAGE, NOT OVERLOAD PROTECTED HOT ONLY IN START AND RUN | |
| 2 | 15S-LG5 (GN-RD) | 18 | REAR VIEW CAMERA DISPLAY, SWITCHED BATTERY VOLTAGE, OVERLOAD PROTECTED HOT ONLY IN START AND RUN | |
| 3 | 31-GK40 (BK) | 18 | REAR VIEW CAMERA, GROUND POWER RETURN | |
| 4 | 8-GK40 (WH-VT) | 20 | REAR VIEW CAMERA, SIGNAL 1 | |
| 5 | 9-GK40 (BN-WH) | 20 | REAR VIEW CAMERA, SIGNAL RETURN (REFERENCE/GROUND) |
| Available Pigtail Kits | |

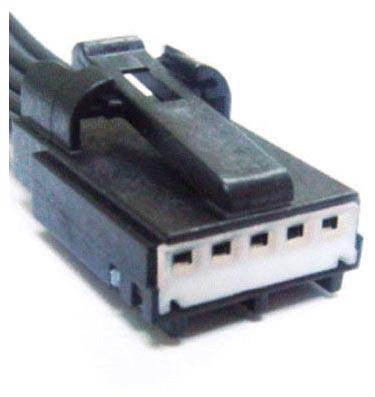

| Pigtail Kit Part Number WPT-881 | Service Part Number: 6U2Z-14S411-SA Gauge: 18 Pin material: Tin Cavities: 5 Vehicle Uses
|

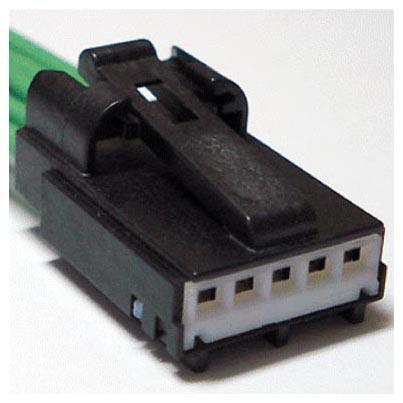

| Pigtail Kit Part Number WPT-983 | Service Part Number: 6U2Z-14S411-SB Gauge: 18 Pin material: Silver Cavities: 5 Vehicle Uses
|
