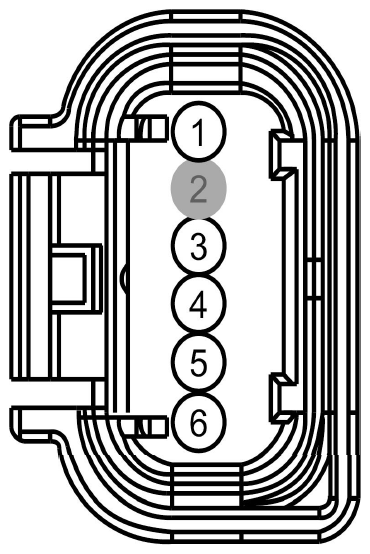

Rear View Camera Connector End View (C4357)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | 7-GK40 (YE-VT) | 20 | REAR VIEW CAMERA, CONSTANT D.C. VOLTAGE OTHER THAN BATTERY | |
| 2 | * | * | Not Used | |
| 3 | 9-GK40 (BN-WH) | 20 | REAR VIEW CAMERA, SIGNAL RETURN (REFERENCE/GROUND) | |
| 4 | 8-GK40 (WH-VT) | 20 | REAR VIEW CAMERA, SIGNAL 1 | |
| 5 | 31-GK40 (BK) | 20 | REAR VIEW CAMERA, GROUND POWER RETURN | |
| 6 | 48-GK40 (*) | 20 | REAR VIEW CAMERA, SHIELD DRAIN |

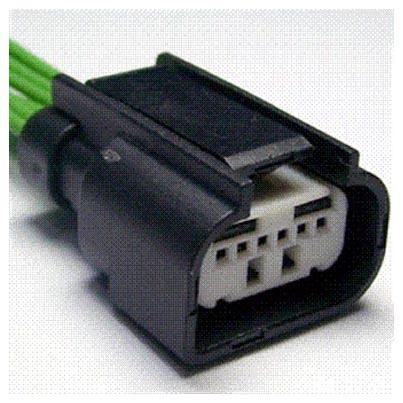

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1280 | Service Part Number: CU2Z-14S411-AEA Gauge: 20 Pin material: Silver Cavities: 6 Vehicle Uses
|
