Power Steering Pressure Sensor Connector End View (C1311)

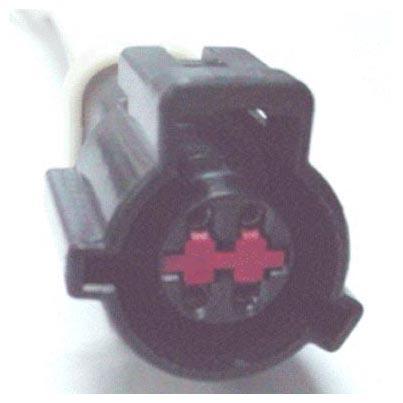

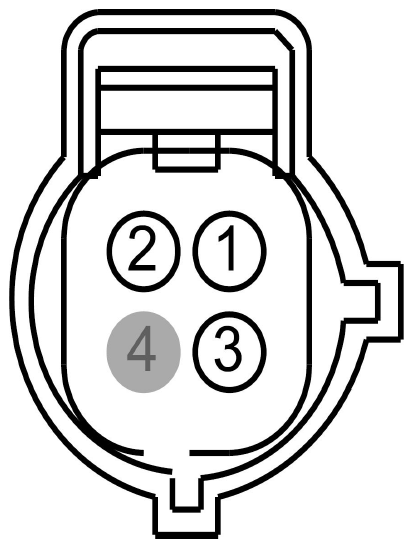

Fig 1: Identifying Power Steering Pressure Sensor Connector (C1311)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	9-TA71 (BN-BU)	20	STEERING~PRESSURE ~SENSOR, SIGNAL RETURN (REFERENCE/GROUND)
2	7-TA71 (YE-BU)	20	STEERING~PRESSURE ~SENSOR, 5V VREF
3	8-TA71 (WH-BU)	20	STEERING~PRESSURE ~SENSOR, SIGNAL
4	*	*	Not Used

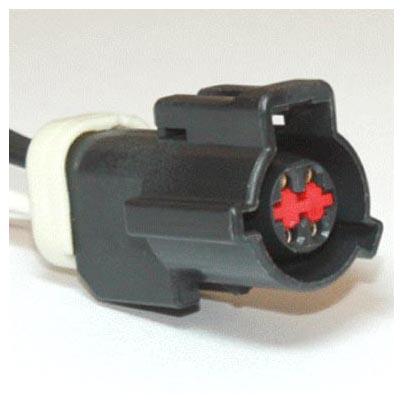

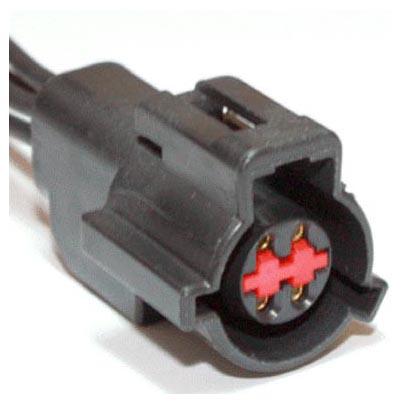

Available Pigtail Kits
Pigtail Kit Part Number WPT-112	Service Part Number: 1U2Z-14S411-LA  Gauge: 14  Pin material: Gold  Cavities: 4  Vehicle Uses Sensor - Catalyst Monitor Sensor - Cylinder Head Temperature Sensor - O2 (HEGO/EGO)
Pigtail Kit Part Number WPT-152	Service Part Number: 1U2Z-14S411-BGA  Gauge: 14  Pin material: Tin  Cavities: 4  Vehicle Uses Fuel Pump/Sending Unit Lamp - Fog/Driving Module - Radio Power Antenna Sensor - Air Suspension Sensor - Catalyst Monitor Sensor - Cylinder Head Temperature Sensor - O2 (HEGO/EGO) Switch - Door Cylinder Disarm (Anti-Theft) Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Hood Ajar
Pigtail Kit Part Number WPT-894	Service Part Number: 7U2Z-14S411-MA  Gauge: 14  Pin material: Tin & Gold  Cavities: 4  Vehicle Uses Radio - Amplifier
