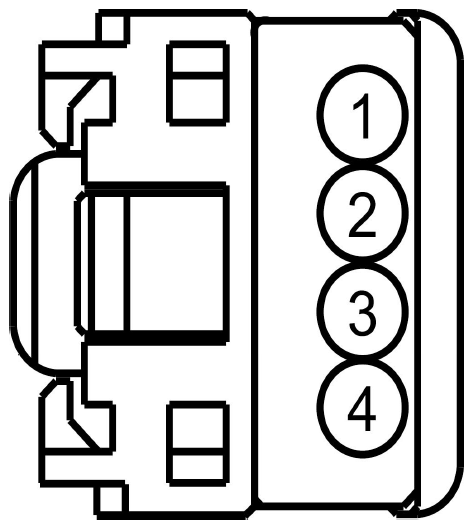

Passive Anti-Theft Transceiver Connector End View (C252)

Fig 1: Identifying Passive Anti-Theft Transceiver Connector (C252)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	15-GL37 (GN-BK)	22	PASSIVE~ANTI THEFT~TRANSCEIVER ~MODULE, BATTERY VOLTAGE, NOT OVERLOAD PROTECTED HOT ONLY IN START AND RUN
2	91-GL1 (BK-YE)	22	1.SPLICE OR BUSBAR *FOR LEFT SIDE, GROUND
3	10-GL37 (GY-OG)	22	PASSIVE~ANTI THEFT~TRANSCEIVER ~MODULE, SIGNAL 2 (Y-DIRECT., REVERSE, DOWNWARD)
4	8-GL37 (WH-GN)	22	PASSIVE~ANTI THEFT~TRANSCEIVER ~MODULE, SIGNAL 1

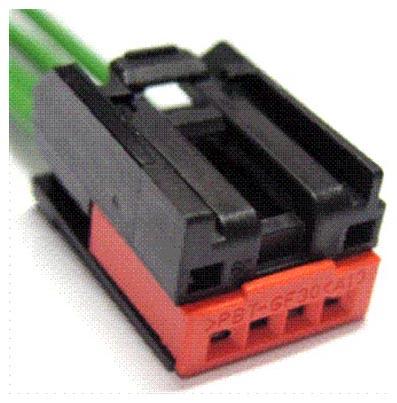

Available Pigtail Kits

Pigtail Kit Part Number WPT-1139

Service Part Number: 3U2Z-14S411-PRC  Gauge: 18  Pin material: Silver  Cavities: 4  Vehicle Uses Connector - Audio Input Lamp - CHMSL (Center High Mount Stop Lamp) Module - Anti-theft Module - Power Moonroof Sensor - Steering Wheel Position Switch - 4x4 Control Switch - Clutch Pedal Position Switch - Deck Lid/Lift Gate Ajar Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Lift Gate Glass Ajar Switch - Message Center Switch - Moon Roof/Sun Roof Transceiver - Passive Anti-Theft (PATS)
