Oil Pressure Switch Connector End View (C103)

Fig 1: Identifying Oil Pressure Switch Connector (C103)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CMC24 (GY)	18	SWITCH - OIL PRESSURE

Available Pigtail Kits

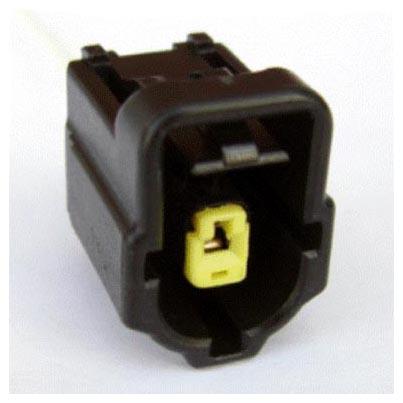

Pigtail Kit Part Number WPT-538	Service Part Number: 3U2Z-14S411-UHA  Gauge: 18  Pin material: Gold  Cavities: 1  Vehicle Uses Switch - Oil Sending Unit

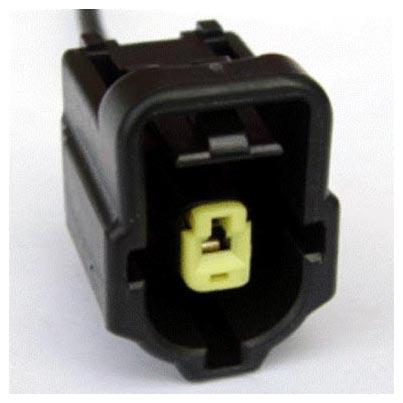

Pigtail Kit Part Number WPT-439	Service Part Number: 3U2Z-14S411-MHA  Gauge: 14  Pin material: Tin  Cavities: 1  Vehicle Uses Sensor - Oil Pressure Switch - Oil Sending Unit
