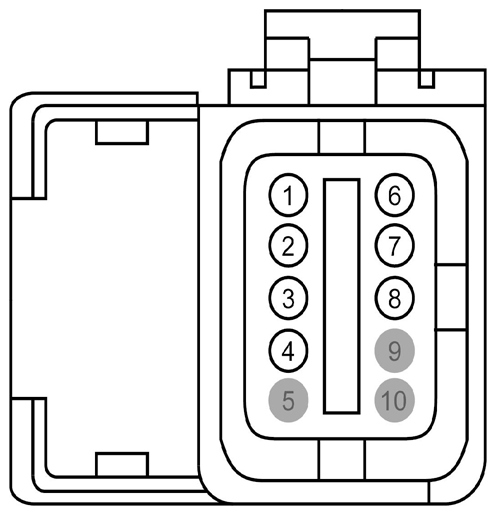

Modem-Antenna Connector End View (C2411)

Fig 1: Identifying Modem-Antenna Connector (C2411)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	5V USB (*)	*	5V USB (IN-DASH COMPUTER)
2	D - (*)	*	USB COMM (IN-DASH COMPUTER)
3	D + (*)	*	USB COMM (IN-DASH COMPUTER)
4	CGND (*)	*	COMMON GND
5	*	*	Not Used
6	TXD (*)	*	SERIAL TRANS (CREW CHIEF)
7	RXD (*)	*	SERIAL RECEIVE (CREW CHIEF)
8	5VTB (*)	*	5V T-BOX (CREW CHIEF)
9	*	*	Not Used
10	*	*	Not Used
