Microphone Connector End View (C9045)

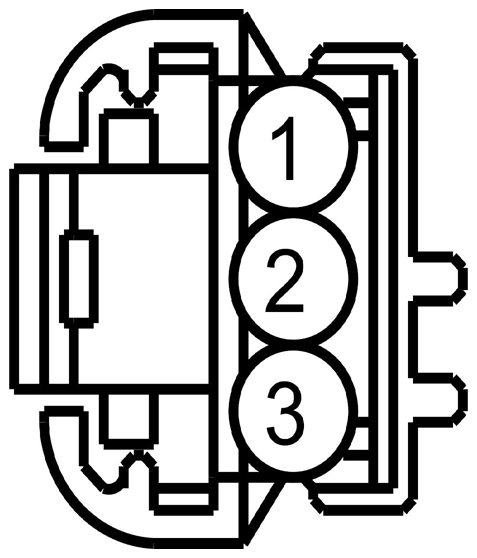

Fig 1: Identifying Microphone Connector (C9045)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	89-MC8 (WH-RD)	20	MICROPHONE ~UNIT, POWER
2	8-MC8 (WH-RD)	20	MICROPHONE ~UNIT, SIGNAL 1
3	3-MC8 (BK)	20	MICROPHONE ~UNIT, AUDIO REFERENCE (RETURN/SHIELD)

Available Pigtail Kits

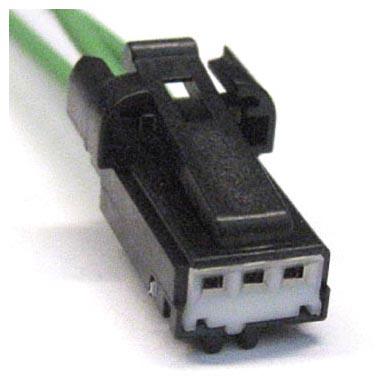

Pigtail Kit Part Number WPT-911	Service Part Number: 8U2Z-14S411-LA  Gauge: 18  Pin material: Silver  Cavities: 3  Vehicle Uses Fuse Panel Junction Block Lamp - Ambient Lighting Lamp - Front Park Lamp - Map Lamp - Park/Turn Lamp - PRNDL Indicator Lamp - Roof Marker Module - Driver Door Sensor - Speed Switch - Ambient Lighting Dimmer
