Inline Connector End View (C710)
Inline Connector End View (C710)

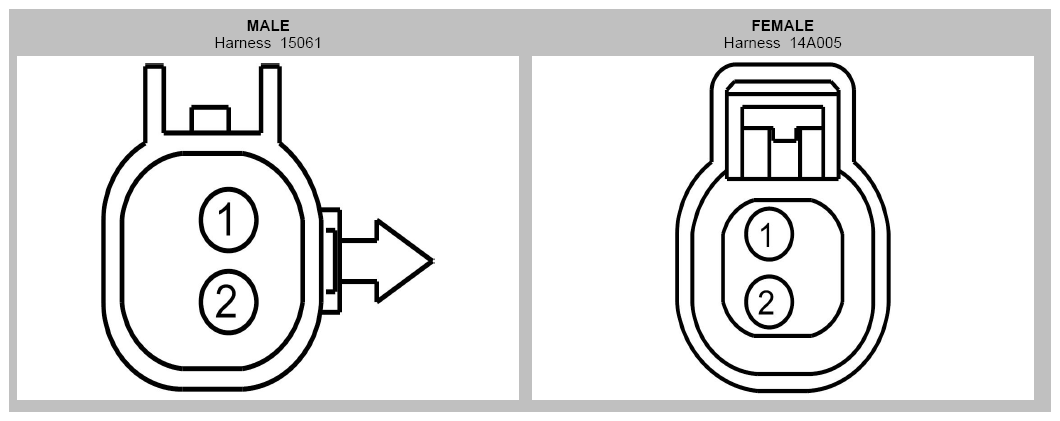

Fig 1: Identifying Inline Connector (C710)
Courtesy of FORD MOTOR CO.
Pin
Circuit
Gauge
Qualifier
1
8-MD11 (WH-VT)
20
2
10-MD11 (GY-WH)
20
Courtesy of FORD MOTOR CO.
