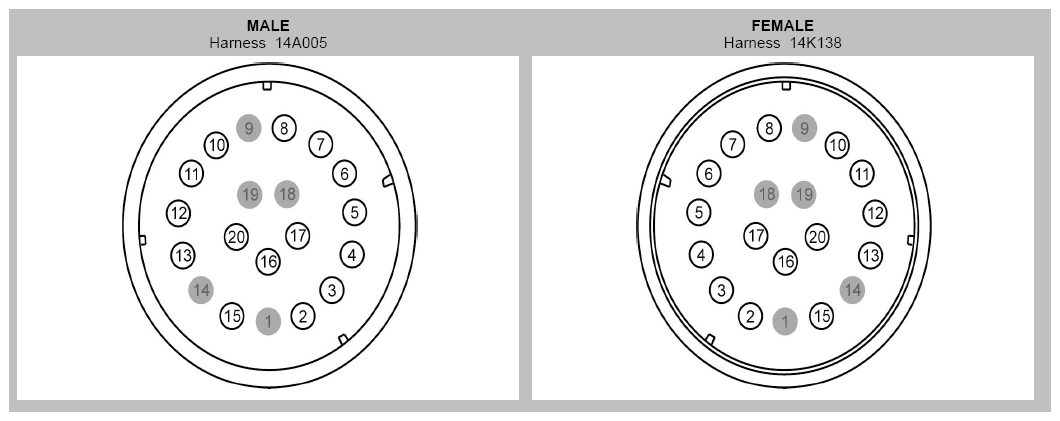

Inline Connector End View (C610)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
* |
* |
|
| 2 |
31-DA12 (BK) |
12 |
|
| 3 |
10-MD17 (GY-RD) |
14 |
14A005 |
| 3 |
10-MD28 (GY) |
14 |
14K138 |
| 4 |
8-MD17 (WH-RD) |
14 |
14A005 |
| 4 |
8-MD28 (WH) |
14 |
14K138 |
| 5 |
33-AJ17 (YE-VT) |
12 |
14K138 |
| 5 |
33-AJ18 (YE-VT) |
12 |
14A005 |
| 6 |
33-AA59 (YE-BK) |
16 |
|
| 7 |
31S-AA63 (BK-OG) |
22 |
|
| 8 |
31S-AA64 (BK-GN) |
22 |
|
| 9 |
* |
* |
|
| 10 |
31S-GL16 (BK-BU) |
22 |
|
| 11 |
32-AJ17 (WH-VT) |
14 |
14K138 |
| 11 |
32-AJ18 (WH-VT) |
12 |
14A005 |
| 12 |
29-AD12 (OG-YE) |
22 |
|
| 13 |
32-AD9 (WH-GN) |
22 |
|
| 14 |
* |
* |
|
| 15 |
33-AD11 (YE-VT) |
22 |
|
| 16 |
34-AD10 (BU-YE) |
22 |
|
| 17 |
32-AA59 (WH-BK) |
16 |
|
| 18 |
* |
* |
|
| 19 |
* |
* |
|
| 20 |
15S-HB28 (GN-OG) |
22 |
14A005 |
| 20 |
15S-HB36 (GN-OG) |
22 |
14K138 |
