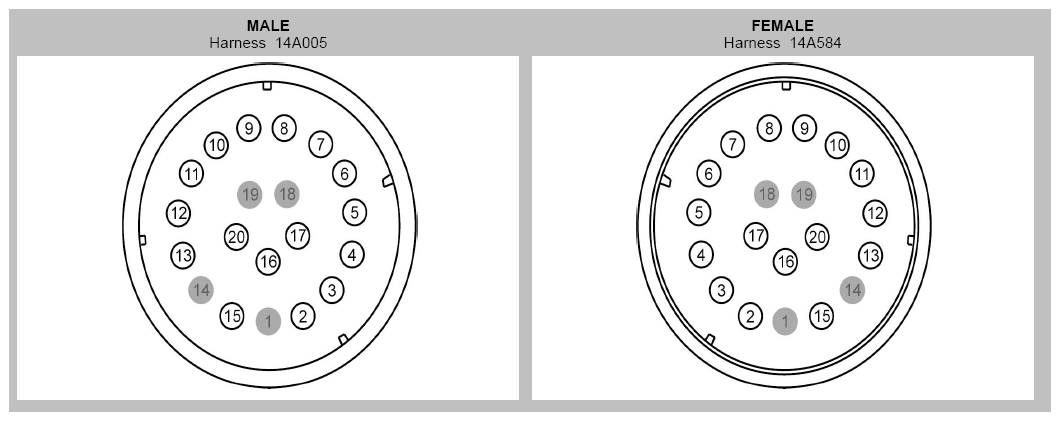

Inline Connector End View (C510)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
* |
* |
|
| 2 |
31-DA11 (BK) |
12 |
|
| 3 |
10-MD10 (GY-BK) |
14 |
14A005 |
| 3 |
10-MD28 (GY) |
14 |
14A584 |
| 4 |
8-MD10 (WH-BK) |
14 |
14A005 |
| 4 |
8-MD28 (WH) |
14 |
14A584 |
| 5 |
15-AJ15 (GN-BK) |
14 |
|
| 6 |
33-AA59 (YE-BK) |
16 |
|
| 7 |
31S-AA63 (BK-OG) |
22 |
|
| 8 |
31S-AA64 (BK-GN) |
22 |
|
| 9 |
32-AJ22 (WH-BK) |
14 |
|
| 10 |
31S-GL9 (BK-YE) |
22 |
|
| 11 |
33-AJ16 (YE-BK) |
14 |
|
| 12 |
29-AD12 (OG-YE) |
22 |
|
| 13 |
32-AD9 (WH-GN) |
22 |
|
| 14 |
* |
* |
|
| 15 |
33-AD11 (YE-VT) |
22 |
|
| 16 |
34-AD10 (BU-YE) |
22 |
|
| 17 |
32-AA59 (WH-BK) |
16 |
|
| 18 |
* |
* |
|
| 19 |
* |
* |
|
| 20 |
15S-HB15 (GN-BK) |
22 |
14A005 |
| 20 |
15S-HB35 (GN-BK) |
22 |
14A584 |
