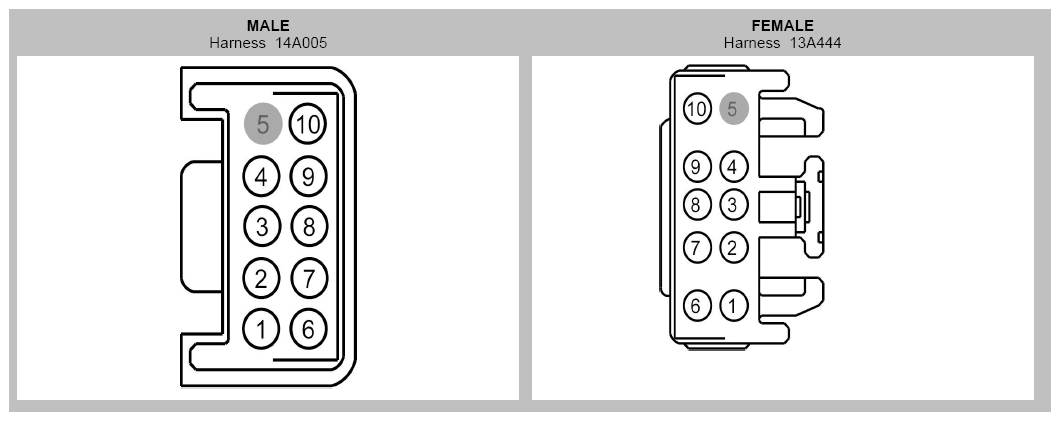

Inline Connector End View (C438)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
31-DA13 (BK) |
12 |
|
| 2 |
7-GK40 (YE-VT) |
20 |
|
| 3 |
15-KA28 (GN-BU) |
16 |
|
| 4 |
32-KA28 (WH-RD) |
16 |
|
| 5 |
* |
* |
|
| 6 |
29S-LF21 (OG-BK) |
20 |
|
| 7 |
15S-HB40 (GN-OG) |
12 |
|
| 8 |
9-GK40 (BN-WH) |
20 |
|
| 9 |
8-GK40 (WH-VT) |
20 |
|
| 10 |
48-GK40 (*) |
20 |
|
