Inline Connector End View (C431)

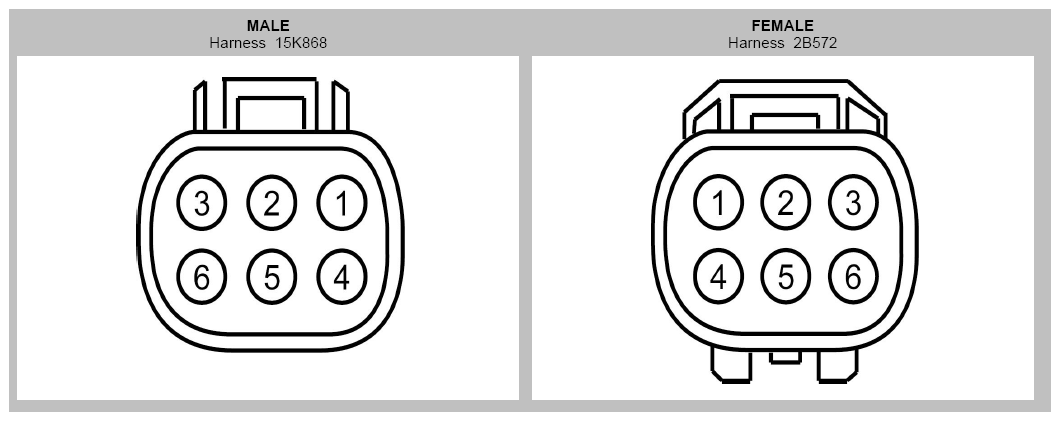

Fig 1: Identifying Inline Connector (C431)
G09083931Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Qualifier
1 7-GN2 (YE-RD) 20
2 8-GN19 (WH) 20
3 8-GN20 (WH-RD) 20
4 8-GN21 (WH-BU) 20
5 8-GN22 (WH-GN) 20
6 9-GN3 (BN-RD) 20
