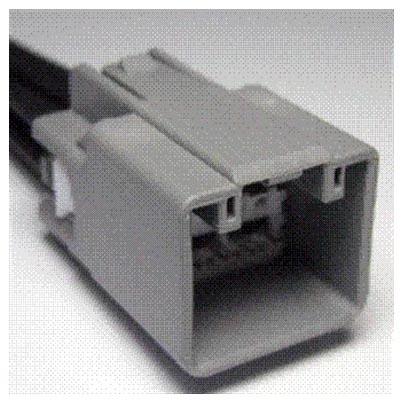

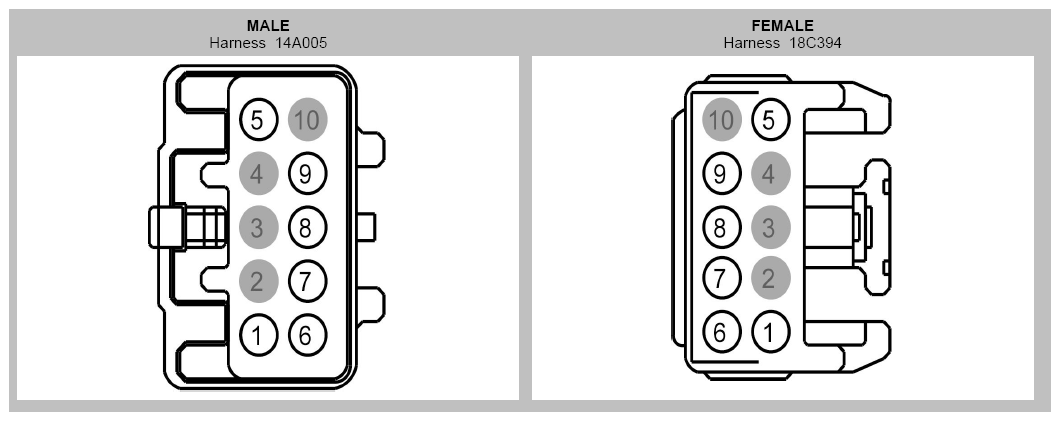

Inline Connector End View (C421)
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | 31S-GL20 (BK) | 22 | |
| 2 | * | * | |
| 3 | * | * | |
| 4 | * | * | |
| 5 | 31S-AA63 (BK) | 22 | |
| 6 | 31-AA60 (BK) | 16 | 14A005 |
| 6 | 33-AA60 (BK) | 16 | 18C394 |
| 7 | 33-AA27 (BK) | 16 | |
| 8 | 32-AA27 (BK) | 16 | |
| 9 | 31-GL20 (BK) | 16 | |
| 10 | * | * |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1175 | Service Part Number: BU2Z-14S411-VA Gauge: 16 Pin material: Tin (greased) Cavities: 10 Vehicle Uses:
|
