Transit Connect XLT Premium
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Connector End Views
>>
Inline Connector End View (C406)
Inline Connector End View (C406)

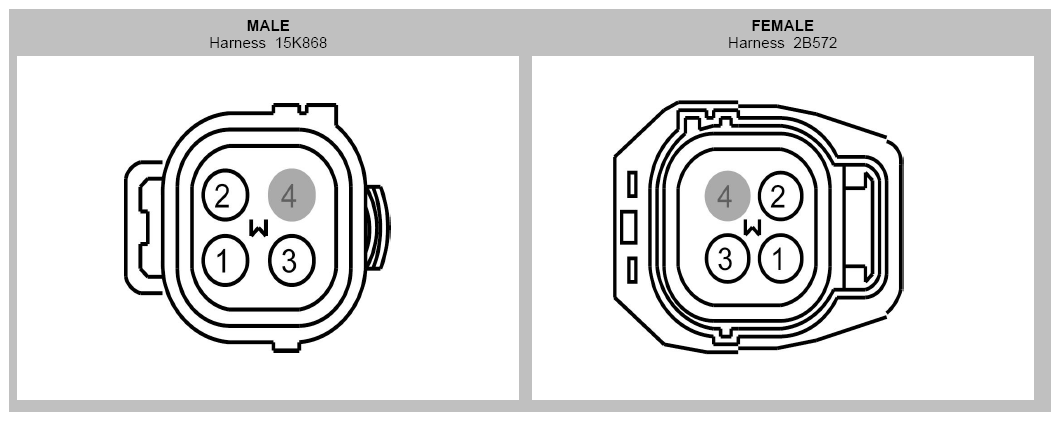

Fig 1: Identifying Inline Connector (C406)
Courtesy of FORD MOTOR CO.
Pin
Circuit
Gauge
Qualifier
1
29-LF7 (BK)
20
2
31-LF1 (BK)
16
3
29-LF16 (BK)
20
4
*
*
Courtesy of FORD MOTOR CO.
