Transit Connect XLT Premium
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Connector End Views
>>
Inline Connector End View (C340D)
Inline Connector End View (C340D)

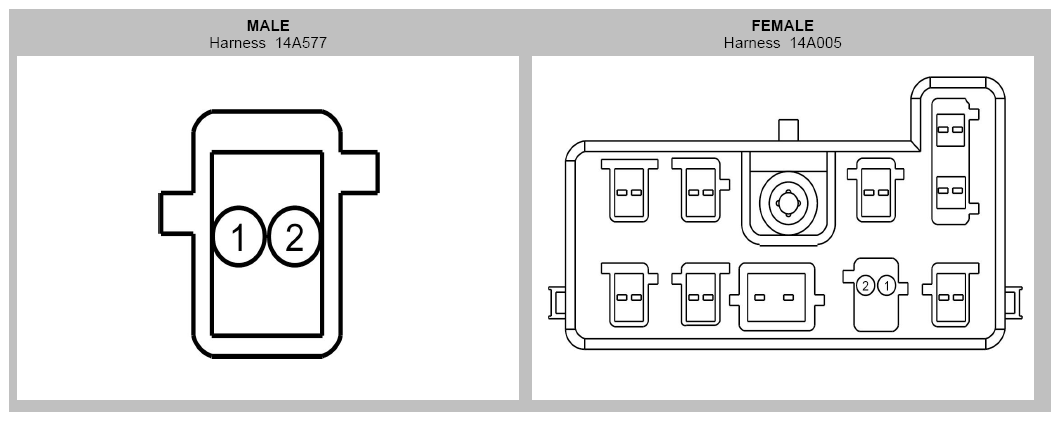

Fig 1: Identifying Inline Connector (C340D)
Courtesy of FORD MOTOR CO.
Pin
Circuit
Gauge
Qualifier
1
8-JA55 (WH-BK)
20
2
9-JA54 (BN)
20
Courtesy of FORD MOTOR CO.
