Inline Connector End View (C340C)
Inline Connector End View (C340C)

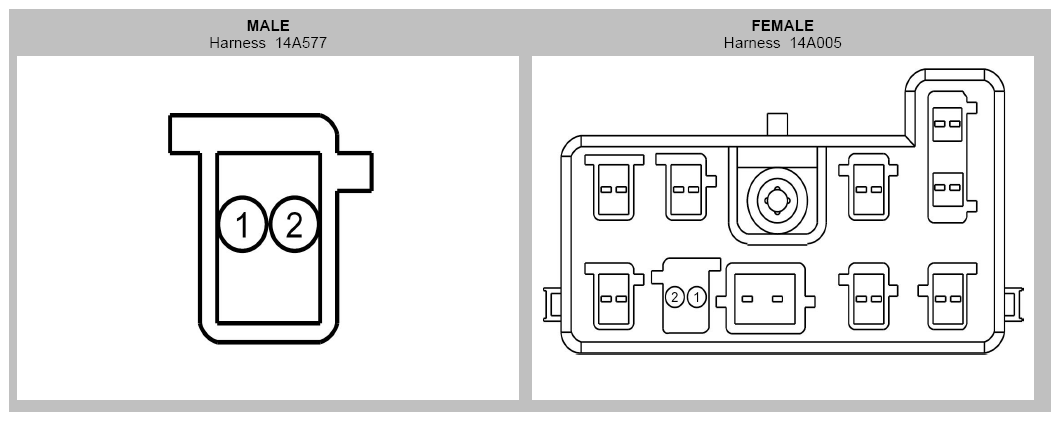

Fig 1: Identifying Inline Connector (C340C)
Courtesy of FORD MOTOR CO.
Pin
Circuit
Gauge
Qualifier
1
4-JA60 (GY-VT)
20
2
5-JA60 (BU-WH)
20
Courtesy of FORD MOTOR CO.
