Transit Connect XLT Premium
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Connector End Views
>>
Inline Connector End View (C339C)
Inline Connector End View (C339C)

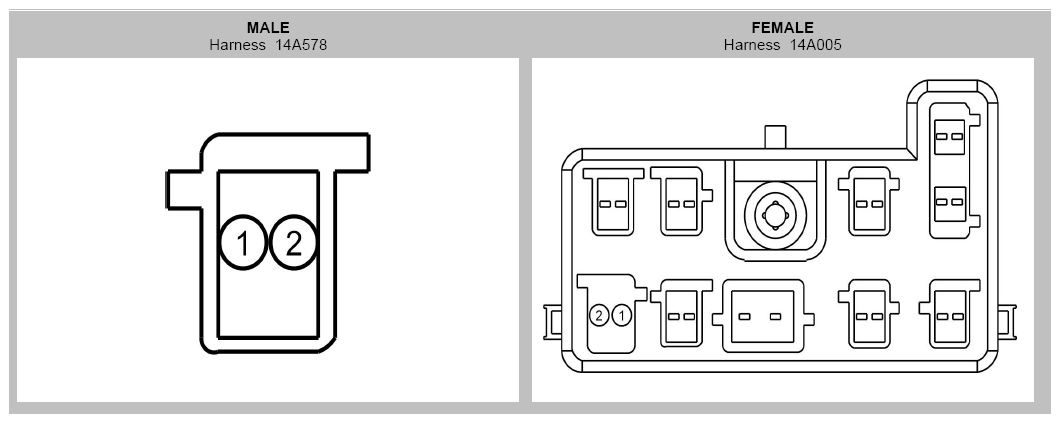

Fig 1: Identifying Inline Connector (C339C)
Courtesy of FORD MOTOR CO.
Pin
Circuit
Gauge
Qualifier
1
9-JA53 (BN-RD)
20
2
7-JA53 (YE-RD)
20
Courtesy of FORD MOTOR CO.
