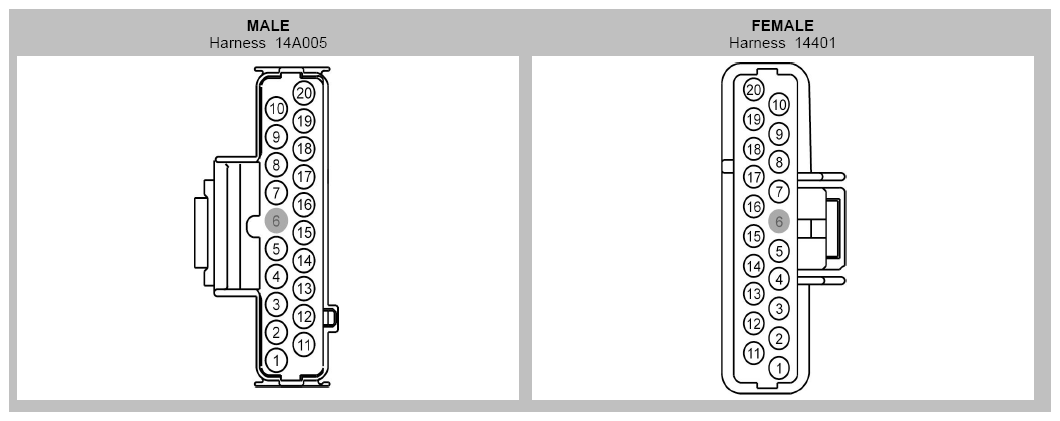

Inline Connector End View (C237)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
7-GN2 (YE-RD) |
20 |
|
| 2 |
30S-AA27 (RD-GN) |
16 |
14401 |
| 2 |
32-AA27 (BK) |
16 |
14A005 |
| 3 |
8-GA7 (WH-RD) |
20 |
14A005 |
| 3 |
8-GA7 (WH-RD) |
22 |
14401 |
| 4 |
31S-AA63 (BK) |
16 |
14A005 |
| 4 |
31S-AA63 (BK-OG) |
22 |
14401 |
| 5 |
33-AA59 (YE-BK) |
16 |
|
| 6 |
* |
* |
|
| 7 |
8-GN19 (WH) |
20 |
|
| 8 |
8-GN20 (WH-RD) |
20 |
|
| 9 |
8-GN21 (WH-BU) |
20 |
|
| 10 |
15-AJ1 (GN-BU) |
12 |
|
| 11 |
15S-HB3 (GN-BU) |
12 |
|
| 12 |
31S-AA63 (BK-OG) |
22 |
|
| 12 |
31S-AA63 (BK-OG) |
22 |
14A005 |
| 13 |
8-GN22 (WH-GN) |
20 |
|
| 14 |
15S-HB15 (GN-BK) |
22 |
14A005 |
| 14 |
15S-HB2 (GN-BU) |
22 |
14401 |
| 14 |
15S-HB28 (GN-OG) |
22 |
14A005 |
| 15 |
29-AD12 (OG-YE) |
22 |
|
| 15 |
29-AD12 (OG-YE) |
22 |
14A005 |
| 16 |
9-GN3 (BN-RD) |
20 |
|
| 17 |
9-GA7 (BN-RD) |
20 |
14A005 |
| 17 |
9-GA7 (BN-RD) |
22 |
14401 |
| 18 |
32-AA59 (WH-BK) |
16 |
|
| 19 |
8-MD11 (WH-VT) |
14 |
|
| 20 |
10-MD11 (GY-WH) |
14 |
|
