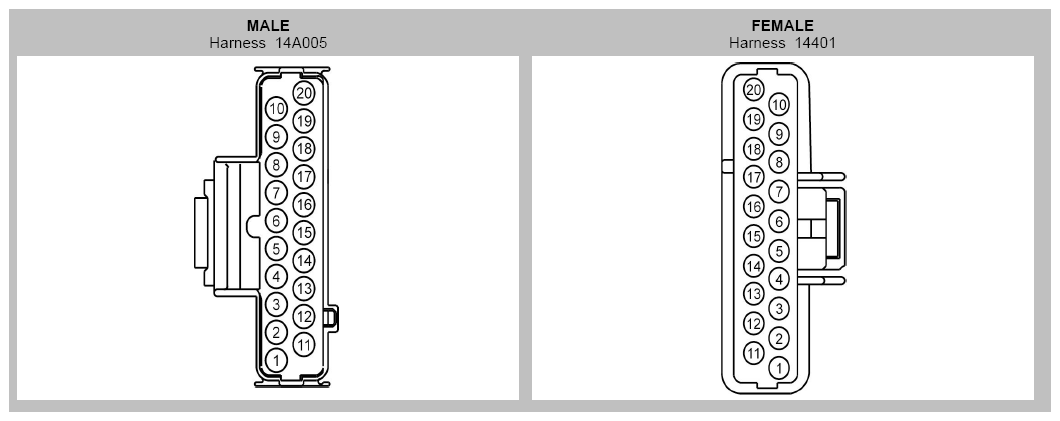

Inline Connector End View (C211)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
31S-LC7 (BK-BU) |
20 |
|
| 2 |
29-LF16 (BK) |
20 |
14A005 |
| 2 |
29S-LF20 (OG) |
20 |
|
| 3 |
31S-AA17 (BK-WH) |
22 |
|
| 4 |
31S-AA64 (BK-GN) |
22 |
|
| 4 |
31S-AA64 (BK-GN) |
22 |
14A005 |
| 5 |
29-LC7 (OG-BU) |
20 |
|
| 6 |
91-JA60 (BK-OG) |
20 |
|
| 7 |
14-JA60 (VT) |
20 |
|
| 8 |
10-MD17 (GY-RD) |
14 |
|
| 9 |
8-MD17 (WH-RD) |
14 |
|
| 10 |
15-GK40 (GN-WH) |
20 |
|
| 10 |
7-GK40 (YE-VT) |
20 |
14A005 |
| 11 |
30S-RH6 (RD-OG) |
14 |
|
| 12 |
8-MD18 (WH) |
14 |
|
| 13 |
4-JA60 (GY-VT) |
20 |
14401 |
| 13 |
4-JA60 (GY-VT) |
22 |
14A005 |
| 14 |
5-JA60 (BU-WH) |
20 |
14401 |
| 14 |
5-JA60 (BU-WH) |
22 |
14A005 |
| 15 |
10-MD18 (GY) |
14 |
|
| 16 |
30-RL3 (RD) |
18 |
|
| 17 |
91S-RL3 (BK-OG) |
18 |
|
| 18 |
7-RJ13 (YE-VT) |
18 |
|
| 19 |
8-RJ13 (WH-VT) |
18 |
|
| 20 |
9-RJ13 (BN-WH) |
18 |
|
