Inline Connector End View (C139)
Inline Connector End View (C139)

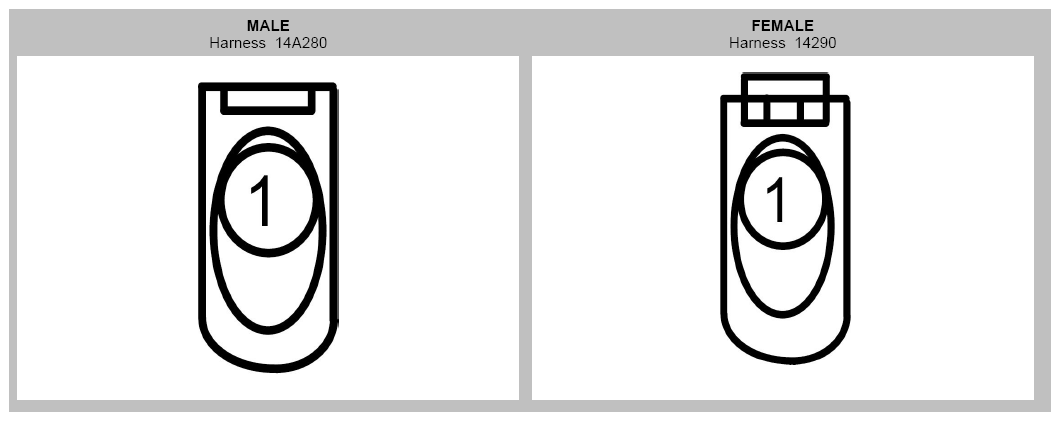

Fig 1: Identifying Inline Connector (C139)
Courtesy of FORD MOTOR CO.
Pin
Circuit
Gauge
Qualifier
1
50-BB12 (GY)
10
14A280
1
50-BB12 (GY)
12
14290
Courtesy of FORD MOTOR CO.
