Inline Connector End View (C126)

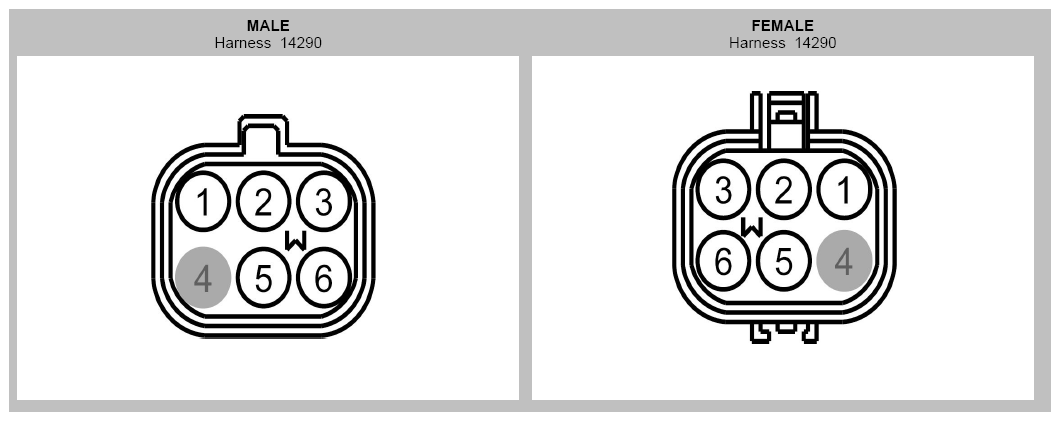

Fig 1: Identifying Inline Connector (C126)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Qualifier
1	30-CF6 (RD)	16
2	15-CF6 (GN-YE)	20
3	4-EC7 (GY-RD)	20
4	*	*	14290
4	91-CF29 (BK-WH)	10	14290
5	30-CF13 (RD)	10
6	5-EC7 (BU-RD)	20
