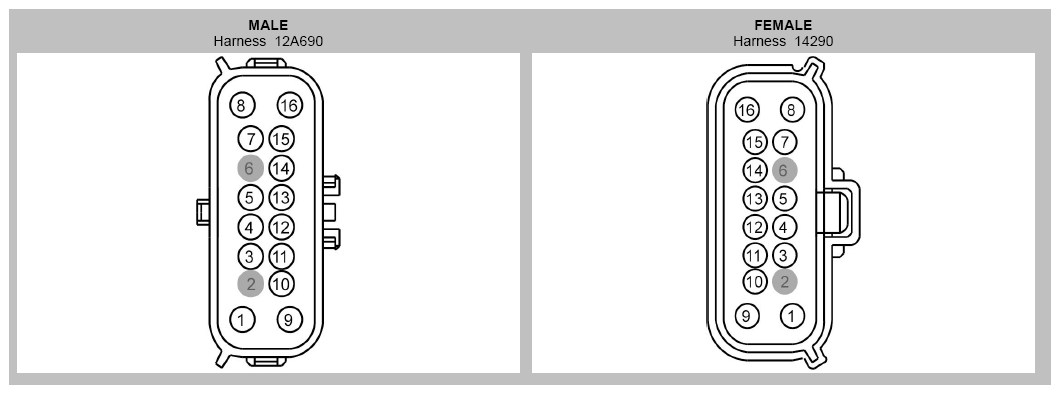

Inline Connector End View (C110)
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | 9-JA49 (BN) | 20 | |
| 2 | * | * | |
| 3 | 15-LG45 (GN-BK) | 18 | |
| 4 | 31S-BB16 (BK-RD) | 18 | |
| 5 | 15S-TA21 (GN-BK) | 20 | |
| 6 | * | * | |
| 7 | 15S-FA6 (GN-YE) | 18 | |
| 8 | 31-FA6 (BK) | 18 | |
| 9 | 31S-LG45 (BK-GN) | 20 | |
| 10 | 91S-RJ14 (BK-YE) | 18 | |
| 11 | 7-JA49 (YE) | 20 | |
| 12 | 50-BB15 (GY-OG) | 18 | |
| 13 | 8-RJ14 (WH) | 20 | |
| 14 | 8-RJ4 (BN or RD) | 20 | |
| 15 | 9-RJ4 (WH or BU) | 20 | |
| 16 | 48-RJ4 (NONE) | 20 |
