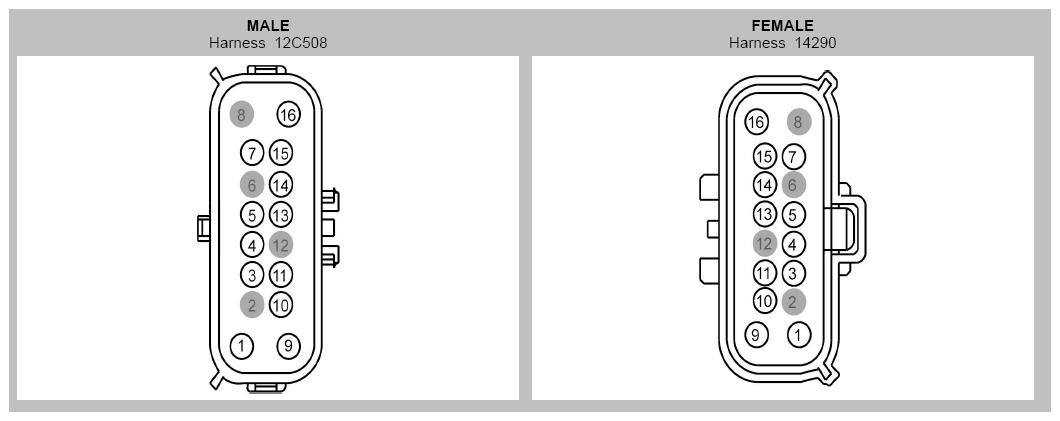

Inline Connector End View (C1045)
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | 15S-RE25 (GN-OG) | 18 | 14290 |
| 1 | CBK04 (VT) | 18 | 12C508 |
| 2 | * | * | |
| 3 | 30-DJ1 (RD) | 20 | 14290 |
| 3 | CDC15 (VT) | 18 | 12C508 |
| 4 | 30S-DJ1 (RD-YE) | 20 | 14290 |
| 4 | CDC10 (BU-OG) | 18 | 12C508 |
| 5 | 31S-GC21 (BK-GN) | 18 | 14290 |
| 5 | CMC24 (GY) | 18 | 12C508 |
| 6 | * | * | |
| 7 | 30-BA10 (RD) | 18 | 14290 |
| 7 | SDC14 (RD) | 18 | 12C508 |
| 8 | * | * | |
| 9 | 29-RH6 (OG) | 20 | 14290 |
| 9 | CBK01 (BU) | 20 | 12C508 |
| 10 | 8-RJ4 (WH or BU) | 20 | 14290 |
| 10 | VE711 (YE-VT) | 18 | 12C508 |
| 11 | 9-RJ4 (BN or RD) | 20 | 14290 |
| 11 | RE135 (GN-BN) | 18 | 12C508 |
| 12 | * | * | |
| 13 | 48-RJ4 (NONE) | 20 | 14290 |
| 13 | DE135 (WH) | 18 | 12C508 |
| 14 | 91S-RJ14 (BK-YE) | 18 | 14290 |
| 14 | CE235 (GN-BN) | 18 | 12C508 |
| 15 | 8-RJ14 (WH) | 20 | 14290 |
| 15 | VE735 (VT-GN) | 18 | 12C508 |
| 16 | 15S-RE25 (GN-OG) | 18 | 14290 |
| 16 | CBK02 (GN) | 20 | 12C508 |

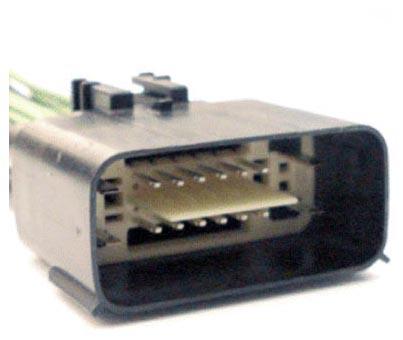

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-892 | Service Part Number: 7U2Z-14S411-KA Gauge: 12 16 Pin material: Tin & Silver Cavities: 16 Vehicle Uses:
|
