Generator Connector End View (C102B)

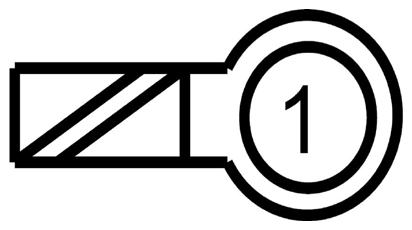

Fig 1: Identifying Generator Connector (C102B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	30-BA6 (RD)	4	ALTERNATOR, BATTERY VOLTAGE, INCL. PRIMARY FUSED HOT AT ALL TIMES
