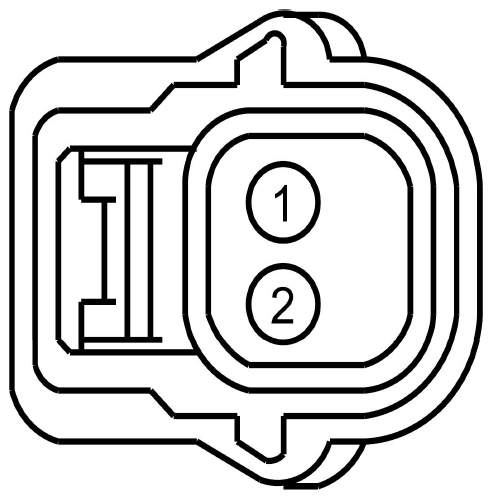

Front Impact Sensor, Right Connector End View (C1466)

Fig 1: Identifying Front Impact Sensor, Right Connector (C1466)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	7-JA49 (YE)	20	FRONT CRASH ~SENSOR, CONSTANT D.C. VOLTAGE OTHER THAN BATTERY
2	9-JA49 (BN)	20	FRONT CRASH ~SENSOR, SIGNAL RETURN (REFERENCE/GROUND)

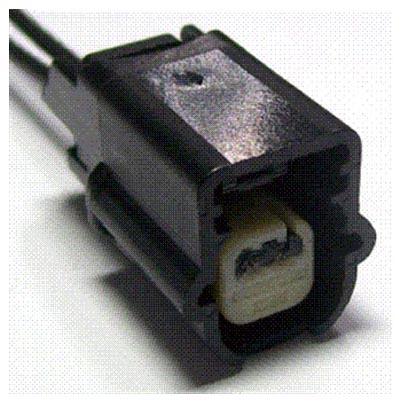

Available Pigtail Kits
Pigtail Kit Part Number WPT-1216	Service Part Number: 8U2Z-14S411-AAB  Gauge: 18  Pin material: Silver  Cavities: 2  Vehicle Uses Sensor - Crash (Engine Compartment) Sensor - Seat Track Position Sensor - Side Impact Solenoid - Down Shift Valve - Heated PCV
Pigtail Kit Part Number WPT-1090	Service Part Number: AU2Z-14S411-YA  Gauge: 18  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Sensor - Crash (Engine Compartment) Sensor - Side Impact
