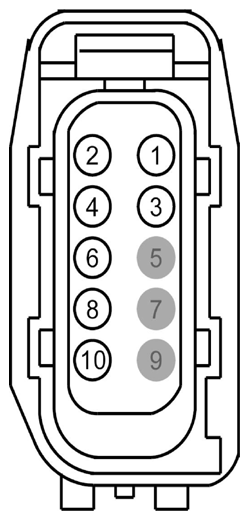

| 1 |
31S-AA64 (BK-GN) |
22 |
DOOR LATCH ~UNIT *UNLOCK SWITCH, SWITCHED GROUND POWER RETURN |
|
| 2 |
33-AA59 (YE-BK) |
16 |
DOOR LATCH ~UNIT *LOCK/UNLOCK, SWITCHED BETWEEN: BATTERY VOLTAGE, GROUND |
|
| 3 |
31S-AA63 (BK-OG) |
22 |
DOOR LATCH ~UNIT *LOCK SWITCH, SWITCHED GROUND POWER RETURN |
|
| 4 |
31-AA60 (BK) |
1.0 |
GROUND |
|
| 5 |
* |
* |
Not Used |
|
| 6 |
31-AA58 (BK) |
16 |
DOOR LATCH ~UNIT (DOOR WIRE ONLY), GROUND POWER RETURN |
|
| 7 |
* |
* |
Not Used |
|
| 8 |
31S-GL9 (BK-YE) |
22 |
LEFT FRONT~DOOR AJAR ~SWITCH, SWITCHED GROUND POWER RETURN |
|
| 9 |
* |
* |
Not Used |
|
| 10 |
32-AA59 (WH-BK) |
16 |
DOOR LATCH ~UNIT *LOCK/UNLOCK, SWITCHED BETWEEN: BATTERY VOLTAGE, GROUND |
|
