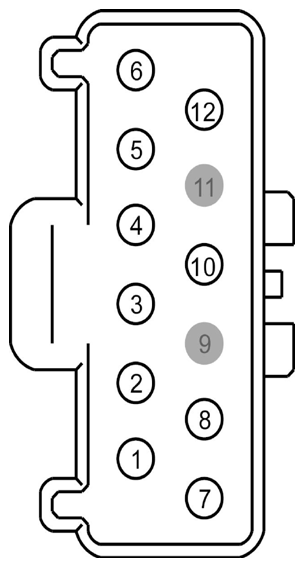

| 1 |
30S-LG12 (RD-YE) |
20 |
BLOCK CONNECTOR, SWITCHED BATTERY VOLTAGE |
TAXI |
| 2 |
8-NC8 (WH-BU) |
20 |
IC SPEED SENSOR, SIGNAL 1 |
TAXI |
| 3 |
29-LC7 (OG-BU) |
20 |
FRONT~DOME ~LAMP, BATTERY VOLTAGE, SECONDARY FUSED HOT AT ALL TIMES |
TAXI |
| 4 |
30-NC12 (RD) |
10 |
FUSE - 3 OR CIRCUIT BREAKER |
TAXI |
| 5 |
30S-LG19 (RD-BU) |
20 |
BLOCK CONNECTOR, BATTERY VOLTAGE, INCL. PRIMARY FUSED HOT AT ALL TIMES |
TAXI |
| 6 |
30-NC12 (RD) |
10 |
FUSE - 3 OR CIRCUIT BREAKER |
TAXI |
| 7 |
14-NC12 (VT-YE) |
16 |
BLOCK CONNECTOR, BATTERY VOLTAGE, OVERLOAD PROTECTED HOT ONLY IN START AND RUN |
TAXI |
| 8 |
14-NC12 (VT-YE) |
20 |
BLOCK CONNECTOR, BATTERY VOLTAGE, OVERLOAD PROTECTED HOT ONLY IN START AND RUN |
TAXI |
| 9 |
* |
* |
Not Used |
|
| 10 |
31-LG12 (BK) |
18 |
BLOCK CONNECTOR, GROUND POWER RETURN |
TAXI |
| 11 |
* |
* |
Not Used |
|
| 12 |
30S-FA73 (RD-BU) |
20 |
REAR FAN, SWITCHED BATTERY VOLTAGE |
TAXI |
