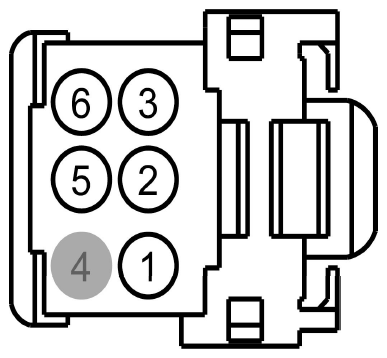

Air Inlet Mode Switch Connector End View (C2890)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | 15-FA28 (GN-YE) | 22 | RECIRCUL.~VALVE ~DIODE, BATTERY VOLTAGE, NOT OVERLOAD PROTECTED HOT ONLY IN START AND RUN | |
| 2 | 91-FA13 (BK-OG) | 22 | A/C ~SWITCH, GROUND | |
| 3 | 29S-LH53 (OG-BK) | 22 | MESSAGE CENTER~SWITCH ILLUM. ~LAMP, SWITCHED BATTERY VOLTAGE, SECONDARY FUSED HOT AT ALL TIMES | |
| 4 | * | * | Not Used | |
| 5 | 91-FA13 (BK-OG) | 22 | A/C ~SWITCH, GROUND | |
| 6 | 15S-FA90 (GN-BK) | 22 | RECIRCUL. ~SWITCH, SWITCHED BATTERY VOLTAGE, NOT OVERLOAD PROTECTED HOT ONLY IN START AND RUN |
