Rear Window Defrost Grid, Left Connector End View (C4247B)

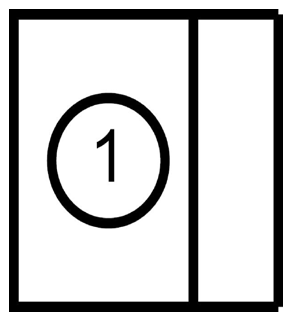

Fig 1: Identifying Rear Window Defrost Grid, Left Connector (C4247B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	31-HB40 (BK)	12	DRV.SIDE ~REAR WINDOW ~HEATER, GROUND POWER RETURN

Available Pigtail Kits

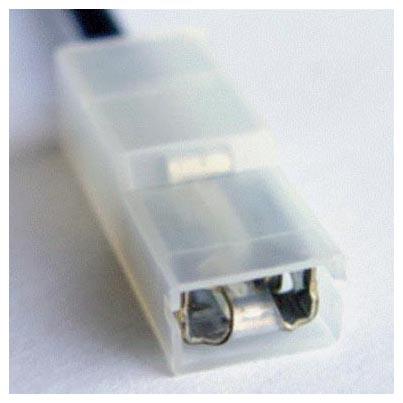

Pigtail Kit Part Number WPT-1017	Service Part Number: 3U2Z-14S411-NYB  Gauge: 14  Pin material: Tin  Cavities: 1  Vehicle Uses Horn Lamp - Courtesy - Reading (Rear) Lamp - Dome Lamp - Storage Compartment - Cargo Terminal - Rear Window Defroster Grid

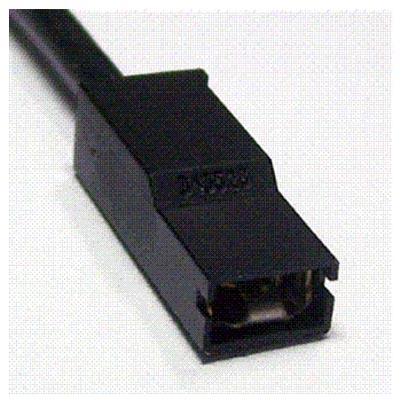

Pigtail Kit Part Number WPT-461	Service Part Number: 3U2Z-14S411-NYA  Gauge: 12  Pin material: Tin  Cavities: 1  Vehicle Uses Lamp - Courtesy - Reading (Rear)
