Inline Connector End View (C423)

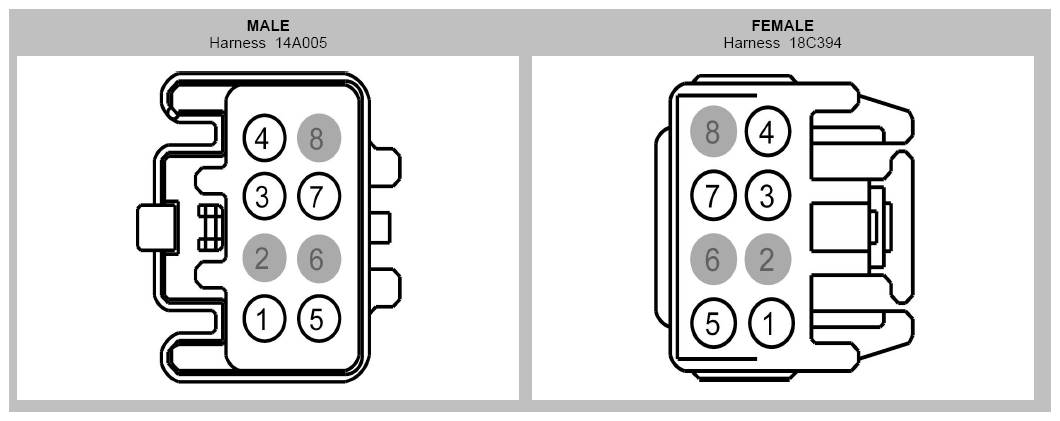

Fig 1: Identifying Inline Connector (C423)
G09083928Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Qualifier
1 31-DA14 (BK) 12
2 * *
3 15-KA28 (GN-BU) 16
4 32-KA28 (WH-RD) 16
5 31S-GL56 (BK-WH) 22
6 * *
7 15S-HB41 (GN-BU) 12
8 * *
