Inline Connector End View (C340E)
Inline Connector End View (C340E)

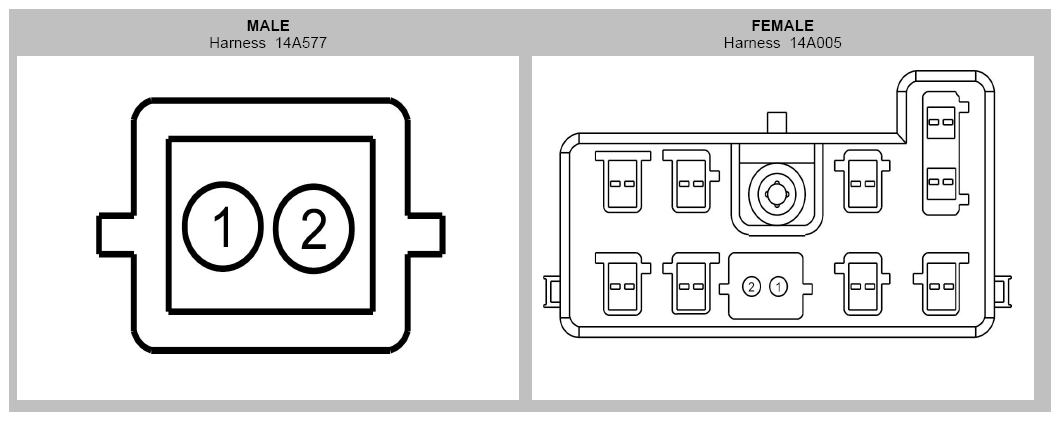

Fig 1: Identifying Inline Connector (C340E)
Courtesy of FORD MOTOR CO.
Pin
Circuit
Gauge
Qualifier
1
8-JA59 (WH-RD)
20
2
7-JA59 (YE-RD)
20
Courtesy of FORD MOTOR CO.
