Body Electrical
>>
OEM Connector End Views
>>
Inline Connector End View (C340B)
Inline Connector End View (C340B)

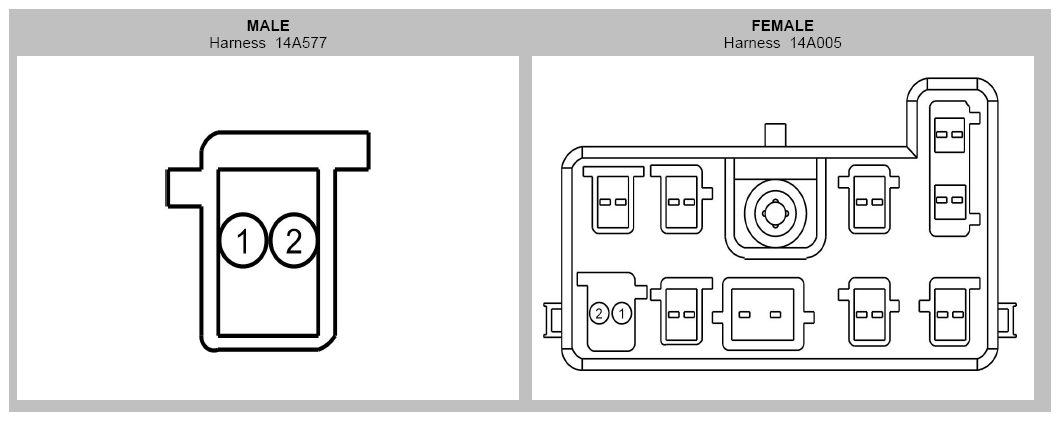

Fig 1: Identifying Inline Connector (C340B)
Courtesy of FORD MOTOR CO.
Pin
Circuit
Gauge
Qualifier
1
14-JA60 (VT)
20
2
91-JA60 (BK-OG)
20
Courtesy of FORD MOTOR CO.
