Inline Connector End View (C3249)

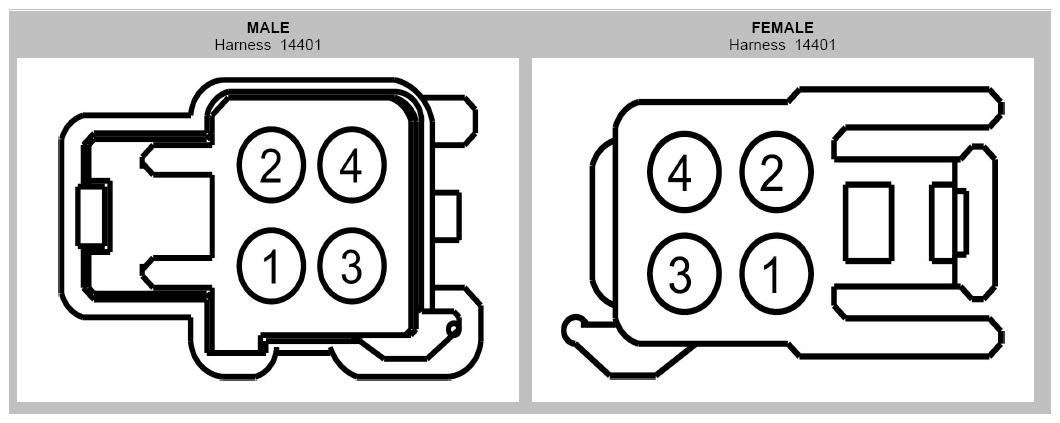

Fig 1: Identifying Inline Connector (C3249)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge
1	15S-JA32 (GN-YE)	20
2	91S-JA32 (BK-YE)	20
3	15S-JA31 (GN-WH)	20
4	91S-JA31 (BK-WH)	20

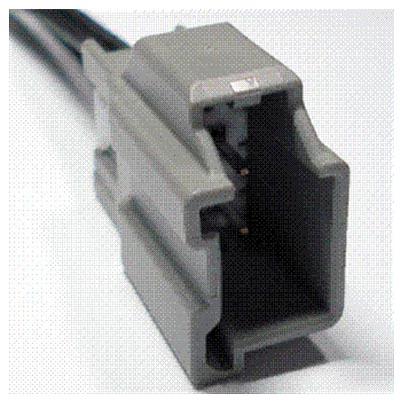

Available Pigtail Kits
Pigtail Kit Part Number WPT-1076	Service Part Number: 3U2Z-14S411-BUB Gauge: 14 Pin material: Tin (greased) Cavities: 4 Vehicle Uses: Connector - Inline Element - Heated Seat Lamp - Ash Tray Lamp - Courtesy - Footwell Module - Remote Keyless Entry Motor - Heater/AC Blower (Auxiliary) Radio - Amplifier Switch - Convertable Top
