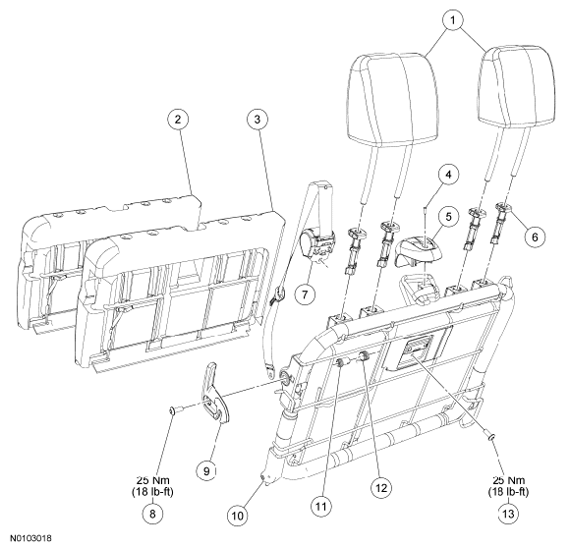

Backrest Disassembly View
NOTE:
LH shown in illustration, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 611A08 | Head restraints |
| 2 | 66600 | Backrest cover |
| 3 | 66801 | Backrest foam pad / backrest reinforcement pad |
| 4 | - | Safety belt cover screw |
| 5 | 624A08 | Safety belt cover |
| 6 | 610A16 | Head restraint guide sleeve (4 required) |
| 7 | 611B68 | Center safety belt retractor |
| 8 | 00813 | Backrest latch bolt |
| 9 | 62418 | Backrest latch |
| 10 | 60509 | Backrest frame |
| 11 | 613A68 | Backrest latch retaining nut |
| 12 | 600K88 | Backrest latch spring |
| 13 | 00813 | Center safety belt retractor bolt |
