Hood Lock Cylinder: Notes
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Multi-Purpose Grease Motorcraft® XL-5 (aerosol) and/or CRC® SL3151 |
ESB-M1C93-B |

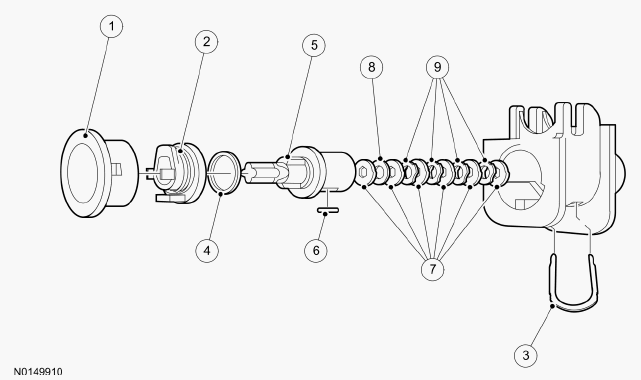

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Hood lock latch guide |
| 2 | - | Hood lock cylinder return spring and guide |
| 3 | - | Hood lock cylinder barrel retaining clip |
| 4 | - | Hood lock cylinder washer |
| 5 | - | Hood lock cylinder barrel |
| 6 | - | Hood lock cylinder barrel locking pin |
| 7 | - | Hood lock cylinder barrel tumblers |
| 8 | - | Hood lock cylinder barrel spring washer |
| 9 | - | Hood lock cylinder barrel spacers |
