Audio System: Notes

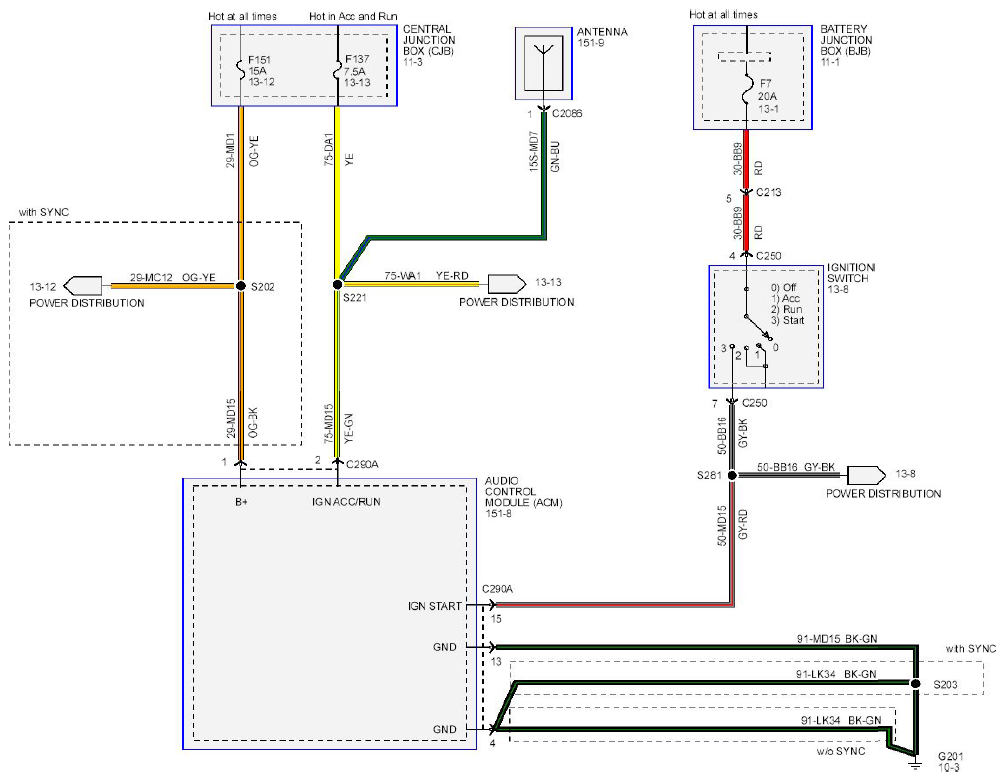

Fig 1: Audio System - Circuit Diagram (1 Of 3)
G09083704Courtesy of FORD MOTOR CO.
Fig 2: Audio System - Circuit Diagram (2 Of 3)
G09083705Courtesy of FORD MOTOR CO.
Fig 3: Audio System - Circuit Diagram (3 Of 3)
G09083706Courtesy of FORD MOTOR CO.
