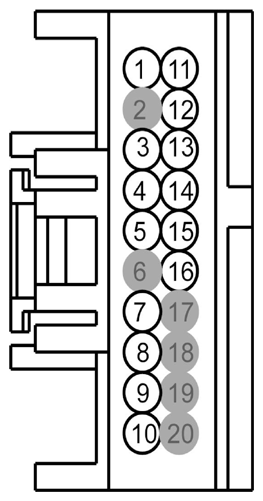

In-Dash Computer Junction Box Connector End View (C2364E)

Fig 1: Identifying In-Dash Computer Junction Box Connector (C2364E)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	* (WH)	18	FUSE - 151 OR CIRCUIT BREAKER
2	*	*	Not Used
3	* (RD)	18	CTRL MOD. - AUDIO # RADIO LEFT FRONT
4	* (WH)	18	CTRL MOD. - AUDIO # RADIO LEFT FRONT
5	* (WH)	18	GND
6	*	*	Not Used
7	* (RD)	18	MS CAN+
8	* (WH)	18	MS CAN-
9	* (WH)	18	CTRL MOD. - AUDIO # RADIO RIGHT FRONT
10	* (RD)	18	CTRL MOD. - AUDIO # RADIO RIGHT FRONT
11	* (RD)	18	AUX RETURN
12	* (BK)	18	AUX RETURN
13	* (GN)	18	AUX LEFT
14	* (WH)	18	AUX RIGHT
15	* (WH)	18	RADIO REMOTE CONTROL +
16	* (WH)	18	RADIO REMOTE CONTROL -
17	*	*	Not Used
18	*	*	Not Used
19	*	*	Not Used
20	*	*	Not Used
