In-Dash Computer Junction Box Connector End View (C2364C)

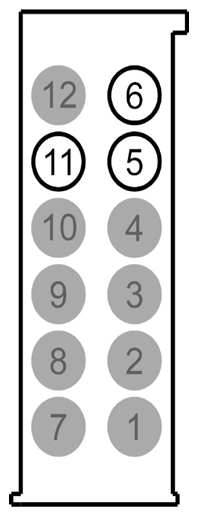

Fig 1: Identifying In-Dash Computer Junction Box Connector (C2364C)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	*	*	Not Used
4	*	*	Not Used
5	8-MD27 (WH-VT)	22	RADIO~INTERFACE ~MODULE, SIGNAL 1
6	3-MD27 (BK)	22	RADIO~INTERFACE ~MODULE, AUDIO REFERENCE (RETURN/SHIELD)
7	*	*	Not Used
8	*	*	Not Used
9	*	*	Not Used
10	*	*	Not Used
11	10-MD27 (GY-WH)	22	CTRL MOD. - AUDIO # RADIO RIGHT
12	*	*	Not Used
