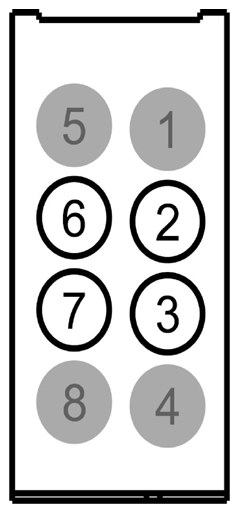

In-Dash Computer Junction Box Connector End View (C2364A)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
* |
* |
Not Used |
|
| 2 |
8-MD17 (WH-RD) |
14 |
RIGHT FRONT ~SPEAKER + |
|
| 3 |
8-MD10 (WH-BK) |
14 |
LEFT FRONT ~SPEAKER + |
|
| 4 |
* |
* |
Not Used |
|
| 5 |
* |
* |
Not Used |
|
| 6 |
10-MD17 (GY-RD) |
14 |
RIGHT FRONT ~SPEAKER - |
|
| 7 |
10-MD10 (GY-BK) |
14 |
LEFT FRONT ~SPEAKER - |
|
| 8 |
* |
* |
Not Used |
|
